T145S Push-Pull with Sheet Saver

1 hydraulic function - and built-in solenoid valve with accessory kit

Request Pricing

Mounted directly on to the fork carriage the KAUP Push-Pull with sheet saver T145S is the right choice when slip-sheets are regularly used as transport mode. In order to separate the complete load from the slip-sheet during pushing, the attachment is fitted with a pallet retainer. It grips the slip-sheet firmly while the load is pushed off so that the slip-sheet can be used several times.

Like all other KAUP Push-Pulls, this range also has a large surface carrying plate for the transportation of palletless loads.

  • Solid construction
  • Good visibility conditions through the attachment
  • Good residual capacity
  • Self supporting scissor system

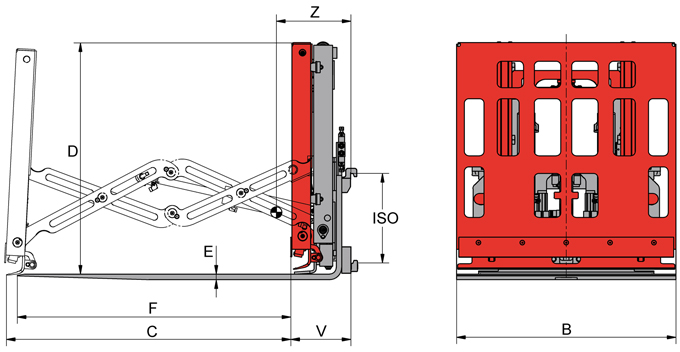

Model Cap. kg LCD mm B mm C mm D mm E mm F mm ISO V mm CofG Z mm Weight kg
1T145S 1.000 600 1.000 1.300 1.035 20 1.250 2 260 330 575
2T145S 1.700 600 1.000 1.300 1.035 25 1.250 2 265 345 635
2T145S 1.700 600 1.000 1.300 1.035 25 1.250 3 265 345 635
3T145S 2.400 600 1.000 1.300 1.035 30 1.250 3 270 365 690
