T155 Load Stabilizer

Optimized for maximum residual capacity by carriages beside the frame - 2 hydraulic functions

Request Pricing

The KAUP Stabilizer with optimised residual capacity has a contact pad frame mounted directly into the fork carriage of the attachment and therefore achieves a low lost load centre. The sideshift stroke allows the driver to compensate inaccuracies.

  • Solid construction
  • Good visibility conditions
  • Good residual capacity
  • Independent sideshift serially

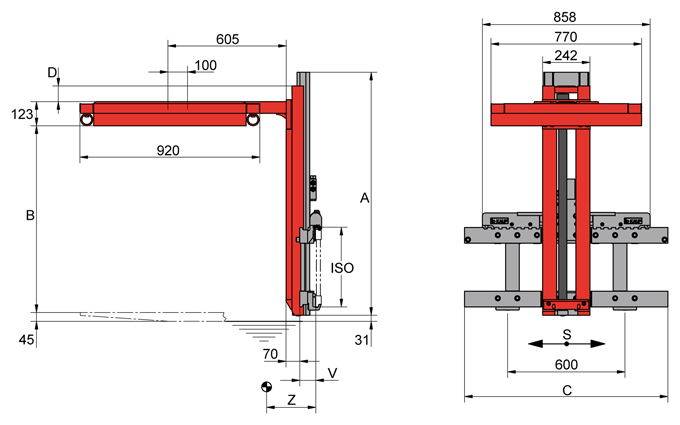

Model Cap. kg LCD mm A mm B mm C mm D mm N ISO S mm V mm CofG Z mm Weight kg
1T155ST 2.500 500 1.240 960-1.970 890 70 3.700 2 ±100 82 205 237
1T155.1ST 2.500 500 1.240 960-1.770 890 0 3.700 2 ±100 82 207 233
1T155.2ST 2.500 500 920 760-1.350 890 0 3.700 2 ±100 82 218 215
1T155.3ST 2.500 500 1.495 960-2.170 890 270 3.700 2 ±100 82 197 252
1T155.4ST 2.500 500 1.240 1.070-2.080 890 0 3.700 2 ±100 82 203 239
1T155.5ST 2.500 500 1.495 1.200-2.210 890 0 3.700 2 ±100 82 199 250
