J250R Rotating Overhead Block Clamp

Rotating Overhead Block Clamp

Request Pricing Download Datasheet

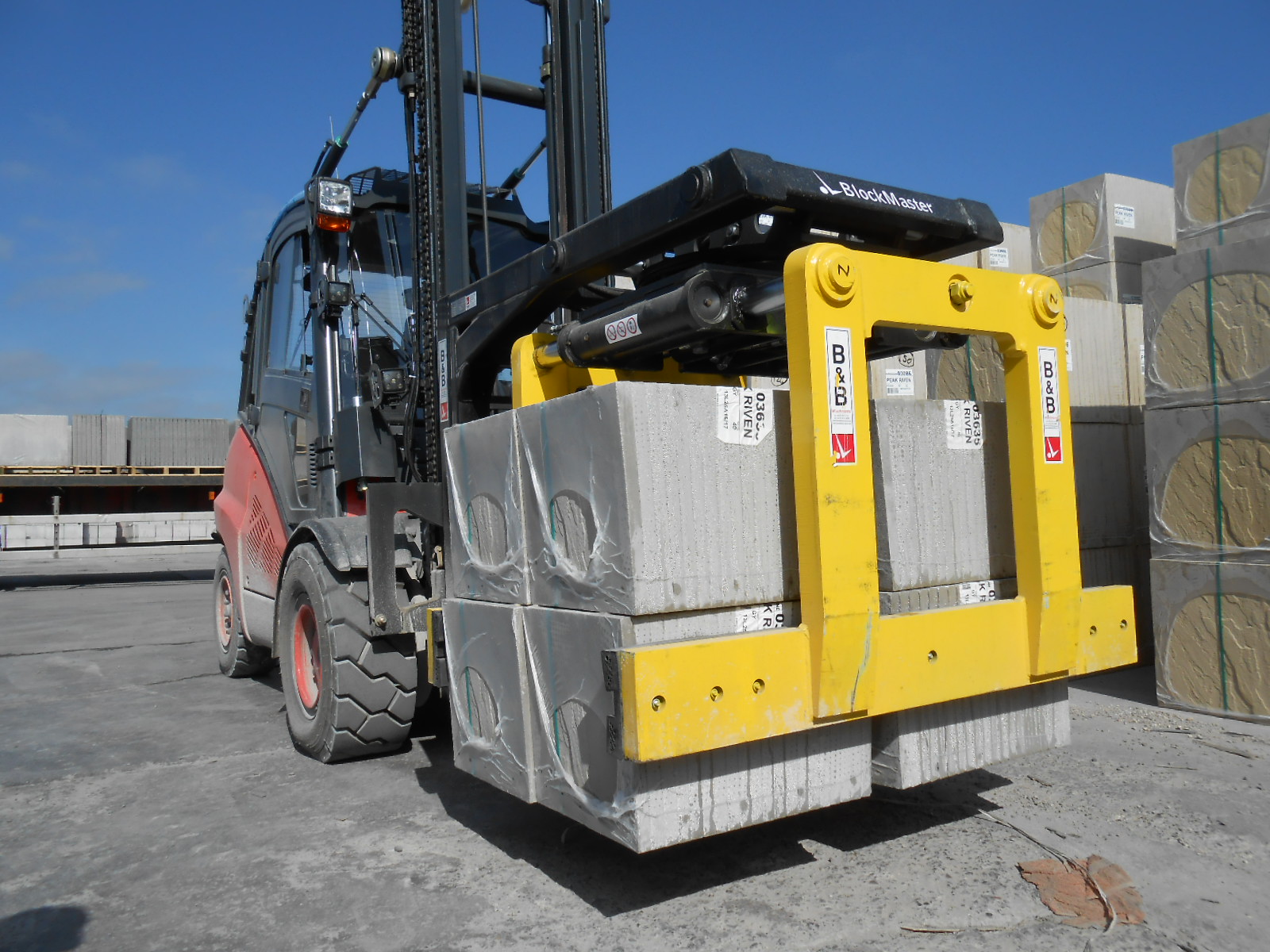

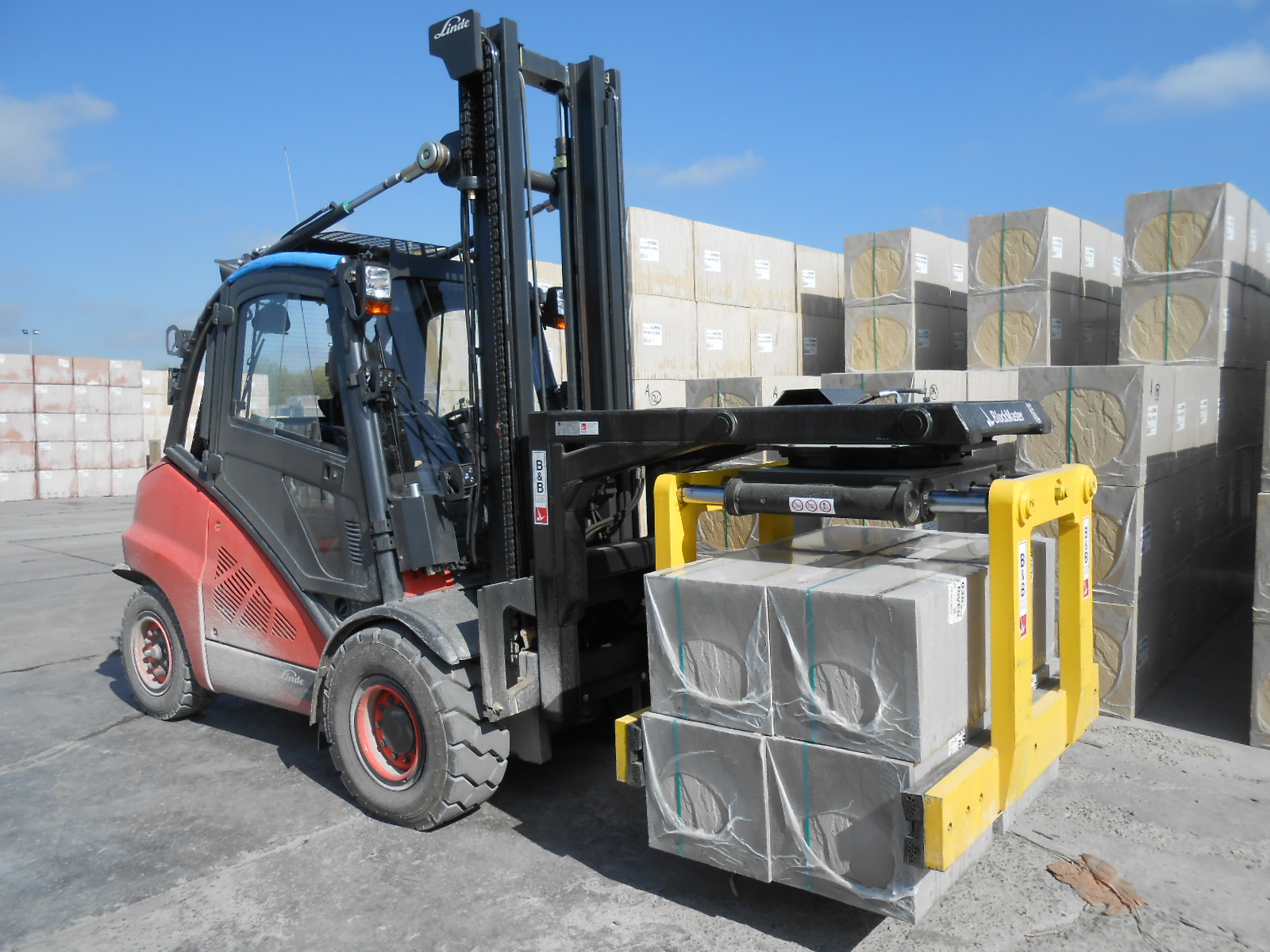

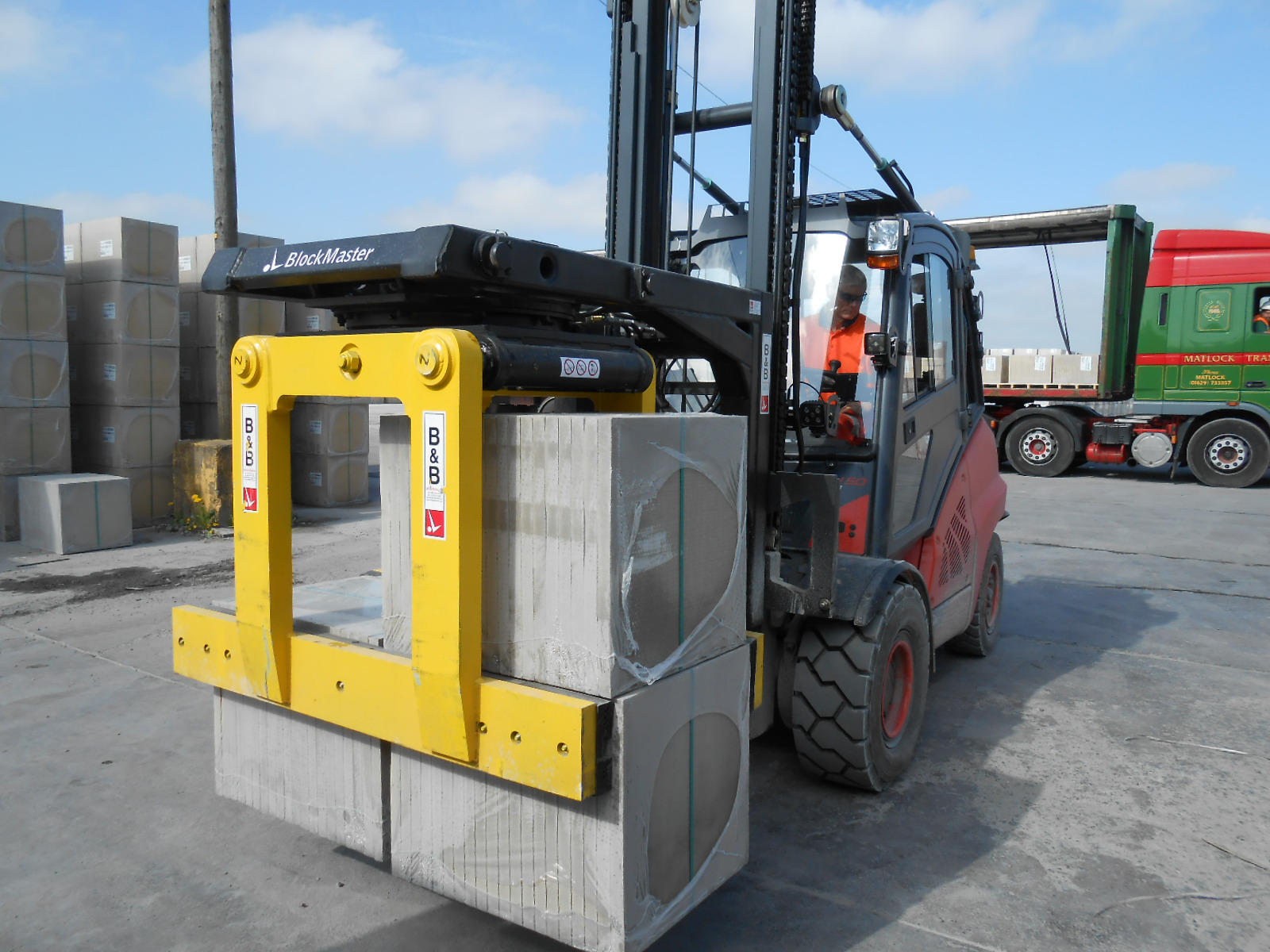

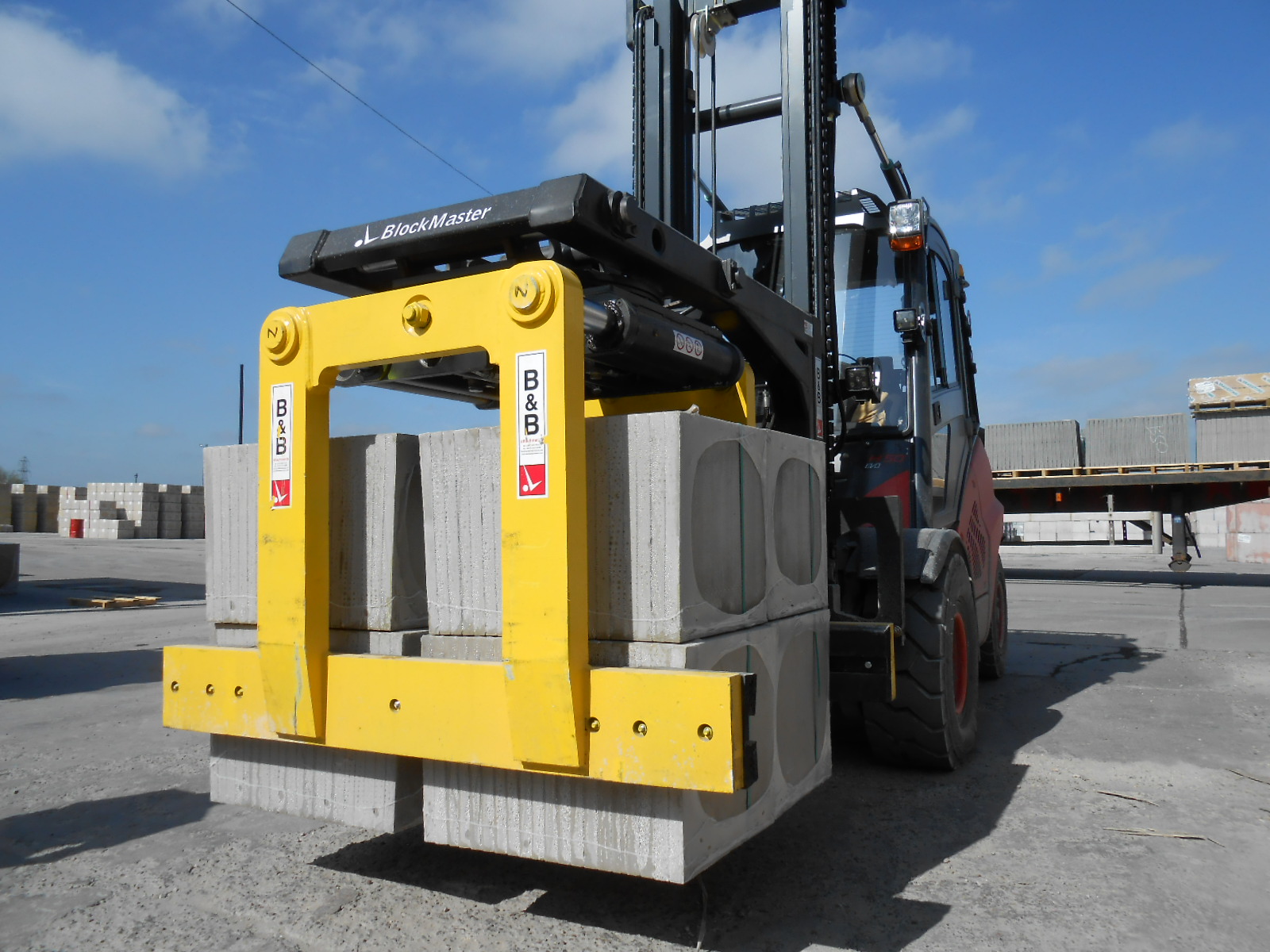

The J250R is an overhead rotating block clamp used for flag, kerb and specialist operations. Rated at 2500kg capacity it is the ideal clamp for production and vehicle loading.

With an inside height of up to 850mm, it allows multiple packs of flag, kerb or decorative stone to be handled at one time. With an extended operational load centre of 1250mm, it also allows products to be positioned in the centre of a vehicle for delivery ensuring the maximum payload for the vehicle.

The heavy duty rotation system ensures packs can be presented in the correct way and aids drivers when loading.

Available in a range of capacities, opening ranges and gripper bar lengths, this rotating attachment is ideal for flag and kerb applications.

  • Clamp rated at 2500kg at 1220mm load centre
  • Low profile jib to aid vehicle loading
  • 360 degree rotation
  • Multiple gripper bars available to stabilize products
  • Various mountings available on request
  • Various gripper bar widths available
  • Three hydraulic functions required
