T414-1L Appliance/Carton Clamp

with independent sideshift - rubber coated arms - both arms swivelling - 2 hydraulic functions

Request Pricing

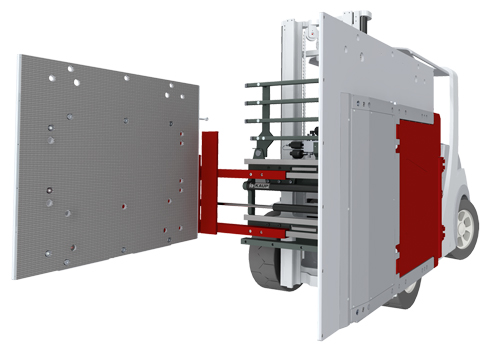

Equipped with parallel running contact pads the KAUP Appliance-/Carton Clamp T414-1L is used to transport white and brown product as well as other wide loads.

  • Low lost load - very good residual capacities
  • Very good visibility conditions
  • Independent sideshift serially
  • Load backrest optional

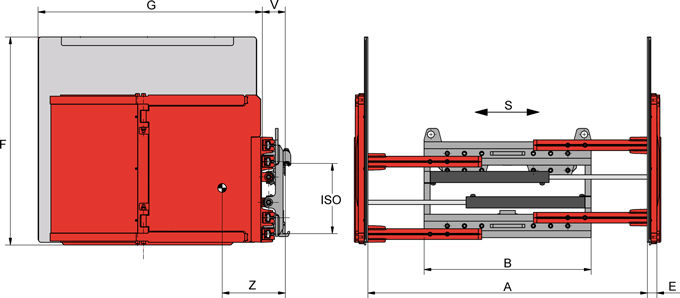

Model Cap. kg LCD mm S mm A mm B mm E mm F mm G mm ISO V mm CofG Z mm Weight kg
1,5T414-1L 1.250 500 ±100 480-1.660 970 55 1.000 1.000 2 133 311 441
1,5T414-1L 1.250 500 ±100 480-1.660 970 55 1.000 1.200 2 133 367 481
1,5T414-1L 1.250 500 ±100 480-1.660 970 55 1.200 1.200 2 133 438 545
1,5T414-1L 1.250 500 ±100 480-1.660 970 55 1.200 1.380 2 133 458 593
1,5T414-1L 1.250 500 ±100 330-1.430 1.040 55 1.000 1.000 2 133 310 443
1,5T414-1L 1.250 500 ±100 330-1.430 1.040 55 1.000 1.200 2 133 366 483
1,5T414-1L 1.250 500 ±100 330-1.430 1.040 55 1.200 1.200 2 133 437 547
1,5T414-1L 1.250 500 ±100 330-1.430 1.040 55 1.200 1.380 2 133 456 595
1,5T414-1L 1.250 500 ±100 410-1.590 1.040 55 1.000 1.000 2 133 310 443
1,5T414-1L 1.250 500 ±100 410-1.590 1.040 55 1.000 1.200 2 133 366 483
1,5T414-1L 1.250 500 ±100 410-1.590 1.040 55 1.200 1.200 2 133 437 547
1,5T414-1L 1.250 500 ±100 410-1.590 1.040 55 1.200 1.380 2 133 456 595
1,5T414-1L 1.250 500 ±100 490-1.840 1.130 55 1.000 1.000 2 133 307 453
1,5T414-1L 1.250 500 ±100 490-1.840 1.130 55 1.000 1.200 2 133 363 493
1,5T414-1L 1.250 500 ±100 490-1.840 1.130 55 1.200 1.200 2 133 433 557
1,5T414-1L 1.250 500 ±100 490-1.840 1.130 55 1.200 1.380 2 133 452 605
1,5T414-1L 1.250 500 ±100 470-1.870 1.200 55 1.000 1.000 2 133 306 462
1,5T414-1L 1.250 500 ±100 470-1.870 1.200 55 1.000 1.200 2 133 361 502
1,5T414-1L 1.250 500 ±100 470-1.870 1.200 55 1.200 1.200 2 133 431 566
1,5T414-1L 1.250 500 ±100 470-1.870 1.200 55 1.200 1.380 2 133 450 614
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.000 1.000 2 143 303 511
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.000 1.200 2 143 363 556
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.200 1.200 2 143 394 620
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.200 1.380 2 143 447 677
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.000 1.000 3 143 303 511
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.000 1.200 3 143 363 556
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.200 1.200 3 143 394 620
2T414-1L 2.000 500 ±100 525-1.725 970 60 1.200 1.380 3 143 447 677
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.000 2 143 301 516
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.200 2 143 361 561
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.200 2 143 392 625
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.380 2 143 445 682
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.000 3 143 301 516
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.200 3 143 361 561
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.200 3 143 392 625
2T414-1L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.380 3 143 445 682
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.000 2 143 299 521
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.200 2 143 358 566
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.200 2 143 389 630
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.380 2 143 442 687
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.000 3 143 299 521
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.200 3 143 358 566
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.200 3 143 389 630
2T414-1L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.380 3 143 442 687
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.000 2 143 285 545
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.200 2 143 344 590
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.200 2 143 375 654
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.380 2 143 428 711
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.000 3 143 285 545
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.200 3 143 344 590
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.200 3 143 375 654
2T414-1L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.380 3 143 428 711
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.000 2 143 278 569
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.200 2 143 337 614
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.200 2 143 368 678
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.380 2 143 421 735
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.000 3 143 278 569
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.200 3 143 337 614
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.200 3 143 368 678
2T414-1L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.380 3 143 421 735
