2T415 Keg Clamp

with independent sideshift - to handle beer kegs - 2 hydraulic functions

Request Pricing

The KAUP Beer Keg Clamp T415 was specially developed for the transport of several beer drums.

The Keg Clamp attachment allows for up to 18 barrels to be handled in a single lift. It provides the driver with excellent visibility when approaching the load, whilst also increasing driver confidence and ensuring safe and secure handling on site.

It is the ultimate solution for improving product handling. The standard features of the Keg Clamp include low profile stabilisers with long lasting rubber pad, wear indicators on tines, solenoid valve and end of stroke cushioning on side shift movement.

  • Good visibility conditions
  • Including load stabilizers
  • Independent sideshift serially

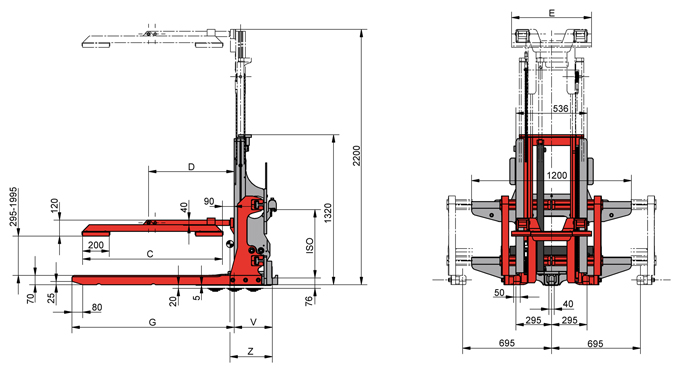

Model Cap. kg LCD mm S mm C mm D mm E mm G mm ISO V mm CofG Z mm Weight app. kg
2T415TB 1.680 635 ±100 1.050 645 600 1.220 2 290 305 690
2T415TB 1.680 635 ±100 1.050 645 600 1.220 3 290 305 690
2T415CT 1.680 635 ±100 1.110 645 555 1.350 2 290 320 705
2T415CT 1.680 635 ±100 1.110 645 555 1.350 3 290 320 705
2T415SC 1.680 635 ±100 1.050 600 595 1.170 2 290 320 705
2T415SC 1.680 635 ±100 1.050 600 595 1.170 3 290 320 705
