T406 Drum Tipping Clamp

without sideshift - with hydraulically tiltable clamp arms 180° forward - 2 hydraulic functions

Request Pricing

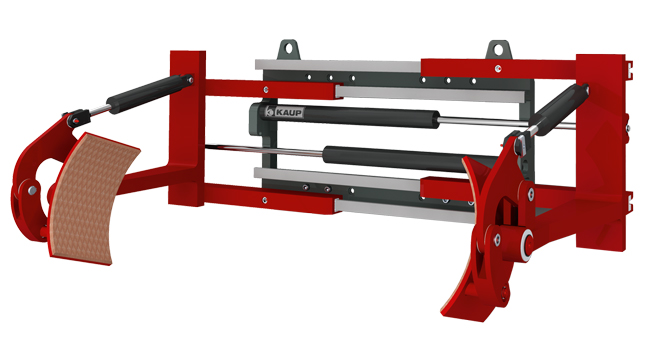

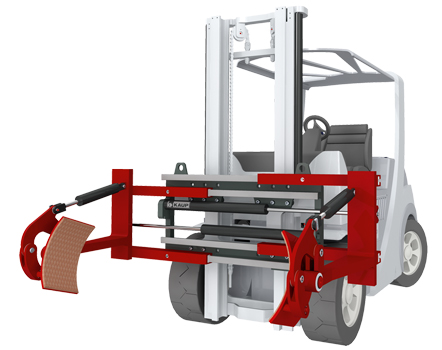

The KAUP Drum Tipping Clamp T406 H/-2H makes it possible to lift recumbent drums and to move them to a vertical position. Clamp arms are serially vulcanised with rubber.

  • Good visibility conditions
  • Good residual capacity
  • Robust construction
  • Up to 180° hydraulically tiltably

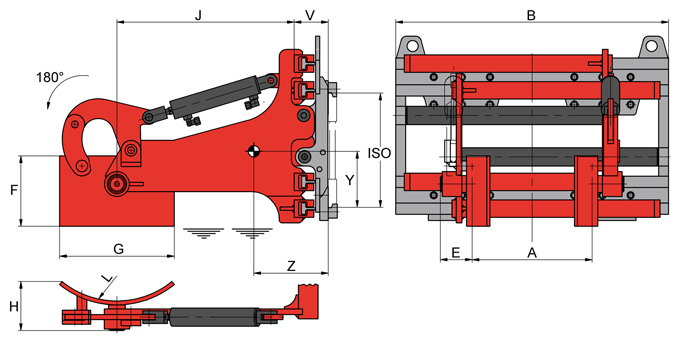

Model Cap. kg LCD mm A mm B mm E mm F mm G mm J mm H mm L mm ISO V mm CofG Z mm Weight app. kg
1,5T406H 300 630 430-1.610 970 113 250 400 630 181 300 2 126 247 290
1,5T406-2H 300 630 430-1.610 970 113 250 400 630 181 300 2 126 268 312
2T406H 1.250 630 180-1.480 1.130 113 250 400 630 181 300 2 136 217 366
2T406-2H 1.250 630 180-1.480 1.130 113 250 400 630 181 300 2 136 240 386
