T253B Triple Sideshifter

2 hydraulic functions

Request Pricing

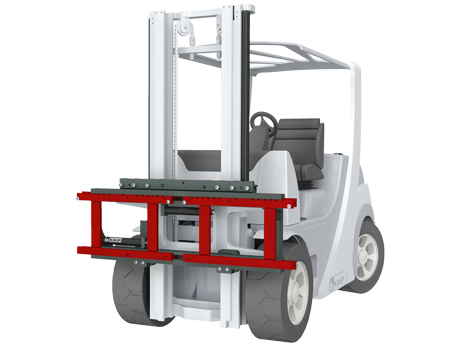

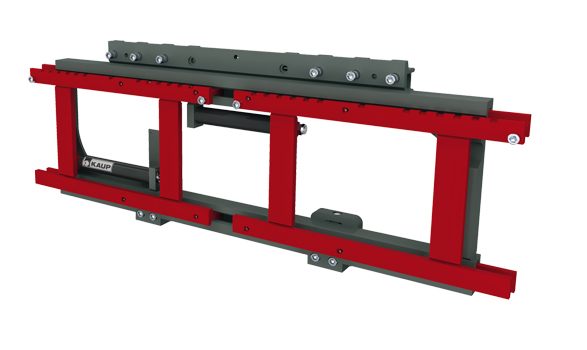

The Triple Sideshifter T253B is a part of the KAUP Multiple Sideshifter product range. This attachment extends the operation of every forklift truck as the Triple Sideshifter can simultaneously pick up two transport units next to each other.

  • Very good residual capacity
  • Good visibility conditions
  • SMOOTHROLL- bottom hooks with compact rollers serially
  • Optional: single or pairwise control of fork pairs

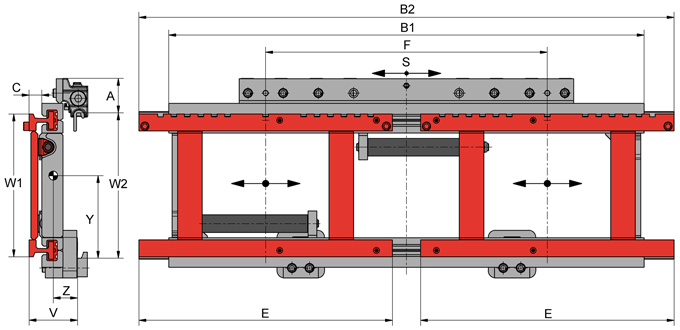

Model Cap. per fork pair kg LCD mm W1 ISO W2 ISO A mm B1 mm B2 mm C mm E mm F mm S mm V mm CofG Z mm CofG Y mm Weight app. kg
2T253B-L 1.250 600 2 2 98 1.350 1.520 36 720 800-1.200 ±100 138 66 234 191
2T253B-L/Q 1.250 600 2 2 98 1.550 1.600 36 800 800-1.440 ±100 138 67 231 207
3T253B-L 1.750 600 2 3 85 1.350 1.520 36 720 800-1.200 ±100 138 63 264 216
3T253B-L/Q 1.750 600 2 3 85 1.550 1.600 36 800 800-1.440 ±100 138 65 260 232
4,5T253B-L 2.000 600 2 3 85 1.350 1.520 36 720 800-1.200 ±100 148 65 270 259
4,5T253B-L/Q 2.000 600 2 3 85 1.550 1.600 36 800 800-1.440 ±100 148 66 265 280
4,5T253B-Q 2.000 600 2 3 85 1.650 1.960 36 980 980-1.540 ±100 148 68 260 298
5T253B-L 2.750 600 3 4 118 1.460 1.520 40 720 800-1.200 ±100 153 73 322 339
5T253B-L/Q 2.750 600 3 4 118 1.600 1.600 40 800 800-1.440 ±100 153 74 320 355
6T253B-L 2.000 1.200 4 4 135 1.460 1.520 56 720 800-1.200 ±160 178 81 366 431
6T253B-L/Q 2.000 1.200 4 4 135 1.600 1.600 56 800 800-1.440 ±160 178 82 363 457
