Pallet Handling

Pallet handling is an essential component in most operations. Storage and transport throughout the warehouse must be well planned, connecting incoming goods, production, packing and shipping. Whether you’re looking to increase productivity or you simply need a way to transport pallets, containers or other large loads from one end of your warehouse to another, we have a solution that will keep your facility running at maximum efficiency.

The demand for increasingly versatile and complex materials handling solutions continues to grow. We have both the skilled staff – acknowledged experts in their field – and superb production, sales and service facilities to support the materials handling industry in an increasingly demanding market and to continue as the UK and Eire’s leading supplier of hydraulic fork lift truck attachments and masts.

T013 Fork Carriage

To enlarge the width of the original fork carriage or as false carriage for fork drop-off

T013-1-2 Adapter Carriage

For changing to different ISO class

2T151P4N Sideshifter

Quick mounting - hook-on type QUICKSEAL cylinders, bottom mounting brackets with EASYSLIDE greasable sliding pads, Max. width 1.190 mm, 1 hydraulic function

T151P2 Sideshifter High-Performance

1 hydraulic function, Quick mounting, hook-on type, end-of-stroke slow-down SOFTSTOP, high visibility design, e.g. CofG up to 1.800 mm, Bottom brackets with roller guidance, SMOOTHROLL.

2T151P4NSchub Sideshifter for Reach Trucks

1 hydraulic function, 2T151P4N with EASYSLIDE greasable sliding pads

2T151P2Schub Sideshifter for Reach Trucks

1 hydraulic function, Quick mounting, hook-on type, end-of-stroke slow-down SOFTSTOP, high visibility design, e.g. CofG up to 1.800 mm, Bottom brackets with roller guidance, SMOOTHROLL.

T151P-C Sideshifter with increased Sideshift Stroke

Sideshifter for container stuffing applications - 1 hydraulic function

T151I Sideshifter

1 hydraulic function

T252B Double Sideshifter

2 hydraulic functions

T253B Triple Sideshifter

2 hydraulic functions

T253B-3 Triple Sideshifter

with 3 fork carriages - 2 hydraulic functions

T156 Sideshifter with Fork Adjustment

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

T163SN Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

T160 Fork Positioner

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330, 2 hydraulic function

T160BI Fork Positioner

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

T160ITW Fork Positioner

with valveblock sideshift dependent on the opening range - without forks, for forks with quick release system 'Terminal West' - 2 hydraulic functions

T160Z Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

T160IZ Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

T466 Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

T466BI Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

T466Z Fork Positioner

with independent sideshift - 2 hydraulic functions

T466BIZ Fork Positioner

with independent sideshift - 2 hydraulic functions

2T466ZH Fork Positioner

without sideshift - 1 hydraulic function

T410Z Fork Positioner

with independent sideshift, 2 hydraulic functions - without forks - for forks acc. to ISO 2330

T411Z Fork Positioner

with independent sideshift - 2 hydraulic functions

T411BZ Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

T411BZI Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

T411ZR Fork Positioner

with independent sideshift - 2 hydraulic functions

T456BZ Rotating Fork Positioner

Rotation 360° continuous - 2 hydraulic functions

T456ZG Rotating Fork Positioner

Rotation 360° continuous - 2 hydraulic functions

T429 Double Pallet Handler

with independent sideshift - with bolt-on forks - For 1 pallet or 2 pallets side by side, model 429-4 for 2 or 4 pallets - 2 hydraulic functions

T409 Double Pallet Handler

with independent sideshift - 2 hydraulic functions

T429B1-2-3 Triple Pallet Handler

with independent sideshift - with bolt-on forks, for 1, 2 or 3 pallets side by side - 2 hydraulic functions

T429-T149Z Double/Triple Pallet Handler

with independent sideshift - with bolt-on forks, for loading and unloading of up to 3 pallets from one side Lorries, Waggons etc.) - 2 hydraulic functions + solenoid valve

T429-4-6 Six Pallet Handler

with independent sideshift - with bolt-on forks, Pallet handling lengthwise 800 x 1.200 mm for 4 or 6 pallets - 2 hydraulic functions

T419-4-8L Four Pallet Handler / Eight Pallet Handler

with independent sideshift - for 2 or 4 pallets side by side or 4 or 8 pallets - 2 hydraulic functions

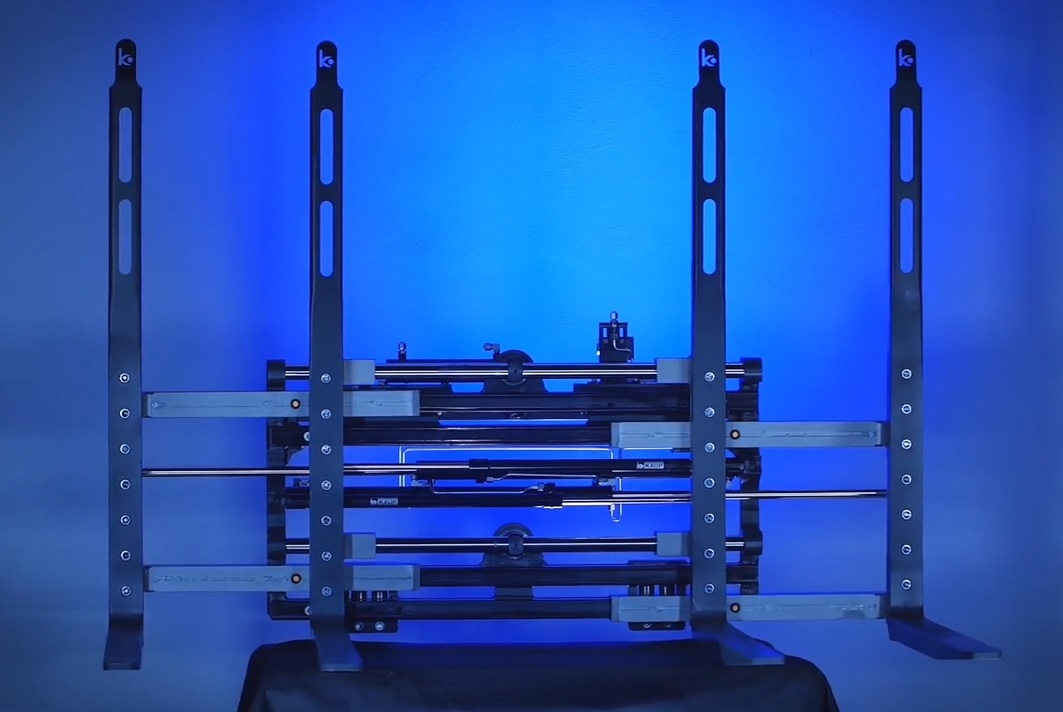

T429C Double Pallet Handler

The newly designed Double Pallet Handler range T429C set new standards for Multi Pallet Handlers in lost load centre, residual capacity and visibility through and over the attachments to the fork tips and load. The practice orientated solid construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance. At the same time the new Double Pallet Handler consumes 20% less energy.

T351 Rotator

1 hydraulic function

T351G Rotator

1 hydraulic function

T411 Fork Clamp

with independent sideshift - 2 hydraulic functions - also available with round forks

T411AH Harbour Clamp

Independent / valveblock sideshift - 2 hydraulic functions - with bolt-on forks - fork length 1.150 mm

T411D Fork Clamp with Turnable Forks

with independent sideshift - Fork length max. 1.300 mm - 2 hydraulic functions

T140SV Reach Fork

with independent sideshift - 2 hydraulic functions

T149-T149Z Pantograph

1 hydraulic function

T180BT Telescopic Fork

1 hydraulic function

T466BT180BT Fork Positioner with Telescopic Fork

with independent sideshift - 2 hydraulic functions + solenoid valve

T180FG Conveyer Belt Forks

1 hydraulic function

T180FG-2-4S Conveyer Belt Forks

with independent sideshift · with adjustable forks - 2 hydraulic functions + solenoid valve

PowerMount

PowerMount allows one forklift truck to use several attachments, providing the best possible utilisation of your forklift fleet

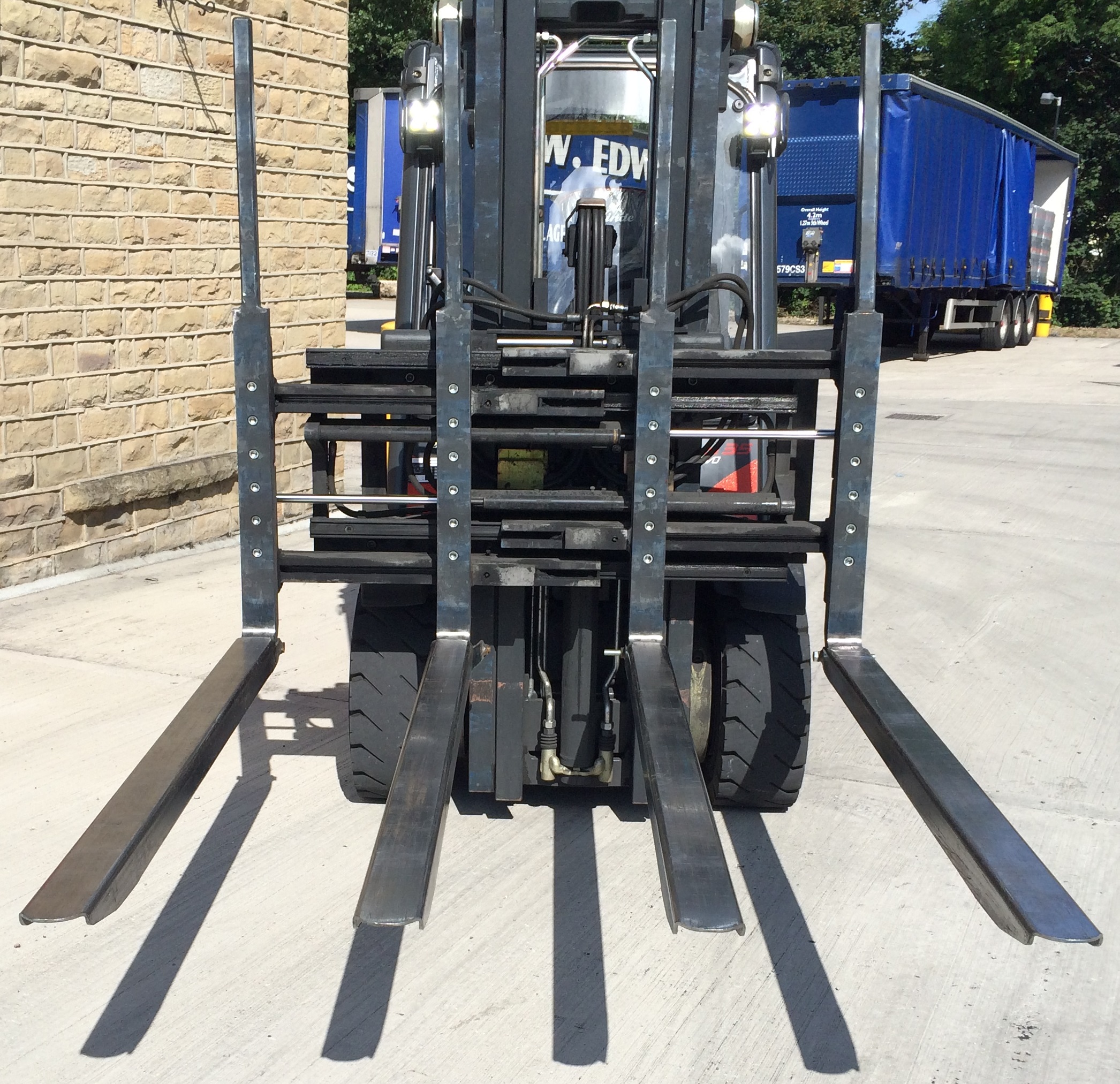

B&B’s Attachment flexibility helps Shepley Spring improve productivity

Established in 1996, Shepley Spring has grown rapidly to become the UK’s only fully-integrated independent own label and contract water bottler. Its centrally-located site in Huddersfield allows for maximum logistical efficiency throughout the UK and Europe. Now, through the supply of Kaup Double Pallet Handler units, on-site productivity has also increased.

Focus on PowerMount Attachment

The UK’s leading supplier of forklift truck attachments, B&B Attachments, is maintaining its reputation for providing innovative products with its PowerMount quick release system.
