T140SV Reach Fork

with independent sideshift - 2 hydraulic functions

Request Pricing

KAUP Reach Forks T140SV combines the advantages of a reach truck. The mobile fork on the backrest fits under the pallet, at the same time the fixed bearing forks support the loading process. By retracting the Reach Forks and backrest the load is moved to the bearing area of the forklift truck. It can then be picked up and transported.

  • Very good residual capacity
  • Good visibility conditions
  • Solid design
  • Sideshift serially

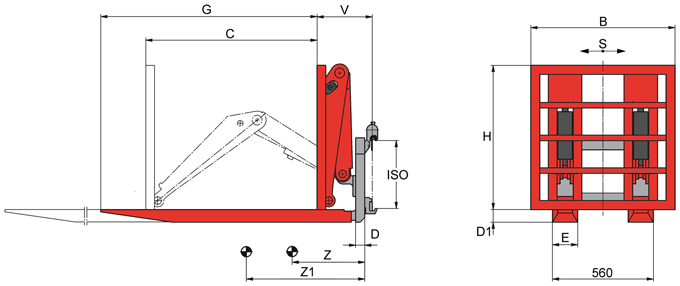

Model Cap. extended kg Cap. retracted kg LCD mm S mm B mm C mm D mm D1 mm E mm G mm H mm ISO V mm CofG Z mm CofG Z1 mm Weight kg
2T140SV 2.000 2.500 600 ±100 800 950 50 70 140 1.200 800 2 310 373 685 430
2T140SV 2.000 2.500 600 ±100 800 950 50 70 140 1.200 800 3 310 332 607 490
