T451 Rotating Fork Clamp

Rotation 360° continuous - 2 hydraulic functions

Request Pricing

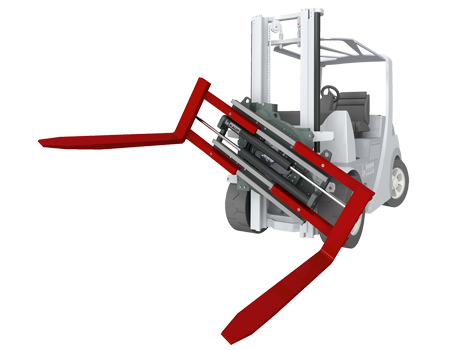

The KAUP Rotating Fork Clamp T451 is an attachment designed with high visibility. Its solid, strengthened construction using 1000-fold proven basic components of the KAUP modular system gives numerous possibilities for heavy duty applications.

  • Good visibility conditions
  • Solid construction
  • Rotation 360° endless
  • Attachment also available with screw-on forks
  • Opening range larger than the construction width
  • Optionally available with sideshift

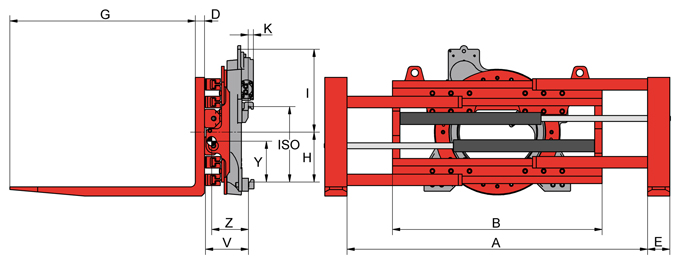

Model Cap. on forks kg Cap. as clamp kg LCD mm A mm B mm D mm E mm G mm H mm I mm K mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1,5T451 1.900 1.250 500 300-1.480 970 45 120 1.200 213 478 33 6.013 7,6 2 216 284 425 On request
1,5T451 1.900 1.250 500 20-920 970 45 120 1.200 213 478 33 6.013 7,6 2 216 286 413 On request
1,5T451 1.900 1.250 500 310-1.660 1.130 45 120 1.200 213 478 33 6.013 7,6 2 216 280 436 On request
1,5T451 1.900 1.250 500 70-1.250 1.200 45 120 1.200 213 478 33 6.013 7,6 2 216 280 438 On request
1,5T451 1.900 1.250 500 290-1.690 1.200 45 120 1.200 213 478 33 6.013 7,6 2 216 279 441 On request
2T451 2.600 2.000 500 310-1.510 1.040 50 120 1.200 269 457 33 7.700 9,7 2 232 273 529 On request
2T451 2.600 2.000 500 320-1.620 1.130 50 120 1.200 269 457 33 7.700 9,7 2 232 271 536 On request
2T451 2.600 2.000 500 70-1.120 1.130 50 120 1.200 269 457 33 7.700 9,7 2 232 272 531 On request
2T451 2.600 2.000 500 120-1.420 1.330 50 120 1.200 269 457 33 7.700 9,7 2 232 269 547 On request
2T451 2.600 2.000 500 320-1.820 1.330 50 120 1.200 269 457 33 7.700 9,7 2 232 268 551 On request
2T451 2.600 2.000 500 310-1.510 1.040 50 120 1.200 269 457 33 7.700 9,7 3 232 273 529 On request
2T451 2.600 2.000 500 320-1.620 1.130 50 120 1.200 269 457 33 7.700 9,7 3 232 271 536 On request
2T451 2.600 2.000 500 70-1.120 1.130 50 120 1.200 269 457 33 7.700 9,7 3 232 272 531 On request
2T451 2.600 2.000 500 120-1.420 1.330 50 120 1.200 269 457 33 7.700 9,7 3 232 269 547 On request
2T451 2.600 2.000 500 320-1.820 1.330 50 120 1.200 269 457 33 7.700 9,7 3 232 268 551 On request
3T451 3.000 2.500 500 260-1.560 1.130 50 150 1.200 338 395 40 8.950 11,3 3 279 290 750 On request
3T451 3.000 2.500 500 260-1.760 1.330 50 150 1.200 338 395 40 8.950 11,3 3 279 288 770 On request
4T451 3.600 2.900 500 260-1.760 1.330 50 150 1.200 338 395 40 8.950 11,3 3 289 279 820 On request
4T451 3.600 2.900 500 130-1.630 1.460 50 150 1.200 338 395 40 8.950 11,3 3 289 278 830 On request
4T451 3.600 2.900 500 260-1.890 1.460 50 150 1.200 338 395 40 8.950 11,3 3 289 278 835 On request
4,8T451 4.500 3.500 500 250-1.650 1.330 60 150 1.200 338 395 40 8.950 11,3 3 314 294 990 On request
4,8T451 4.500 3.500 500 120-1.520 1.460 60 150 1.200 338 395 40 8.950 11,3 3 314 293 995 On request
4,8T451 4.500 3.500 500 220-1.720 1.460 60 150 1.200 338 395 40 8.950 11,3 3 314 293 1.000 On request
5T451 4.500 3.500 600 270-1.670 1.330 70 150 1.200 345 445 48 13.434 15,7 4 360 325 1.246 On request
5T451 4.500 3.500 600 280-1.910 1.550 70 150 1.200 345 445 48 13.434 15,7 4 360 322 1.293 On request
5T451 4.500 3.500 600 550-2.450 1.550 70 150 1.200 345 445 48 13.434 15,7 4 360 322 1.302 On request
5T451 4.500 3.500 600 280-2.180 1.820 70 150 1.200 345 445 48 13.434 15,7 4 360 320 1.335 On request
6T451B 6.000 4.200 600 490-2.390 1.550 60 180 1.200 345 510 46 17.157 20,7 4 393 317 1.600 On request
