T451D Rotating Fork Clamp with Turnable Forks

Rotation 360° continuous - fork length max. 1.300 mm - 2 hydraulic functions

Request Pricing

The KAUP Rotating Fork Clamp with Turnable Forks T451D is a very versatile attachment and suitable for all kinds of applications. The carrying part of the forks are tiltable by 45° and 90°. Allowing for kinds of fork operation with palletised products, grid boxing and loads with suitable insertion pockets can be carried out. This attachment also allows for clamping and turning of bales, boxes and cartons.

  • Good visibility conditions
  • Strong construction
  • Rotation 360° endless
  • Opening range larger than the construction width
  • Optionally available with sideshift

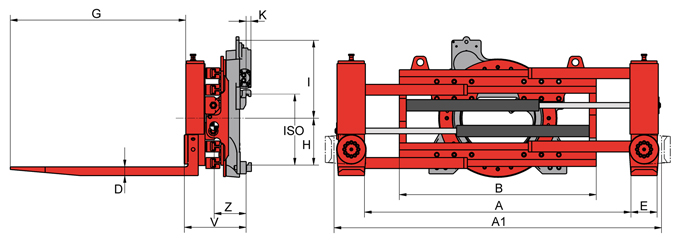

Model Cap. on forks kg Cap. as clamp kg LCD mm A mm B mm D mm E mm G mm A1 mm I mm K mm H mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1,5T451D 1.900 1.250 500 90-1.090 970 40 120 1.200 380-1.380 478 33 213 6.013 7,6 2 331 286 433 On request
1,5T451D 1.900 1.250 500 270-1.450 970 40 120 1.200 560-1.740 478 33 213 6.013 7,6 2 331 285 436 On request
1,5T451D 1.900 1.250 500 260-1.660 1.200 40 120 1.200 550-1.950 478 33 213 6.013 7,6 2 331 281 452 On request
2T451D 2.300 2.000 500 130-1.330 1.130 50 150 1.200 510-1.710 457 32 269 7.700 9,7 2 356 312 602 On request
2T451D 2.300 2.000 500 230-1.530 1.130 50 150 1.200 610-1.910 457 32 269 7.700 9,7 2 356 312 605 On request
2T451D 2.300 2.000 500 230-1.730 1.330 50 150 1.200 610-2.110 457 32 269 7.700 9,7 2 356 308 620 On request
2T451D 2.300 2.000 500 130-1.330 1.130 50 150 1.200 510-1.710 457 32 269 7.700 9,7 3 356 312 602 On request
2T451D 2.300 2.000 500 230-1.530 1.130 50 150 1.200 610-1.910 457 32 269 7.700 9,7 3 356 312 605 On request
2T451D 2.300 2.000 500 230-1.730 1.330 50 150 1.200 610-2.110 457 32 269 7.700 9,7 3 356 308 620 On request
