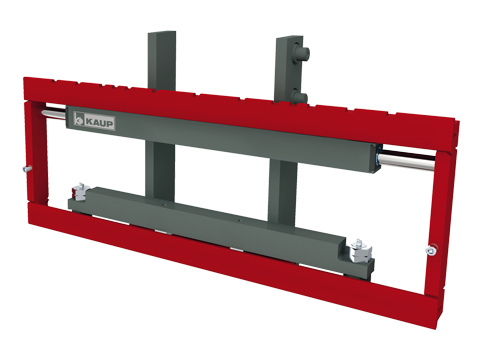

T151I Sideshifter

1 hydraulic function

Request Pricing

B&B offer a complete Sideshift program with integrated Sideshifters and as integrated Sideshifters offering increased lost load centers.

  • Very good residual capacity
  • Maximum visibility
  • Minimum loss of friction due to roller guides extends the length of operation, especially on battery powered forklifts

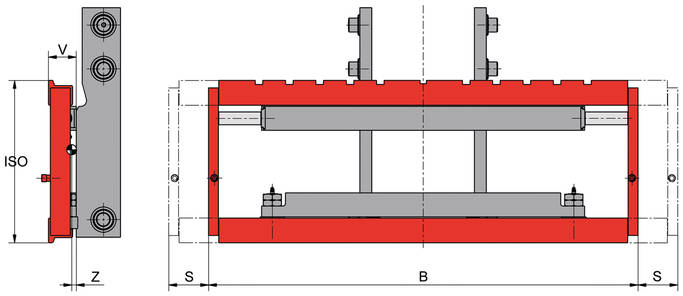

Model Cap. kg LCD mm B mm S mm ISO V mm CofG Z mm Weight kg
1,5T151I 1.750 500 1.040 ±100 2 61 36 92
2,5T151I 2.500 500 1.150 ±100 2 70 36 102
3T151I 3.000 500 1.150 ±100 3 75 35 130
3,5T151I 3.500 500 1.150 ±100 3 85 43 135
4,5T151I 4.500 500 1.350 ±100 3 85 44 200
4,8T151I 5.000 500 1.350 ±100 3 90 43 220
6T151I 6.000 600 1.550 ±140 4 95 47 280
6T151I 6.000 600 1.650 ±140 4 95 47 298
6T151I 6.000 600 1.800 ±140 4 95 47 310
8T151I 8.000 600 1.800 ±160 4 166 77 395
8T151I 8.000 600 2.260 ±160 4 166 85 465
10T151I 8.000 1.100 1.860 ±160 4 210 110 622
10T151I 8.000 1.100 2.260 ±160 4 210 114 680
10T151I 8.000 1.100 2.400 ±160 4 210 115 700
12T151I 12.000 600 2.600 ±150 -- 215 165 2.650
16T151I 16.000 600 2.800 ±150 -- 215 175 2.780
