T106AHA-2H180 Rotating Roll Arms

slip-on version - hydraulically turnable up to 180°

Request Pricing

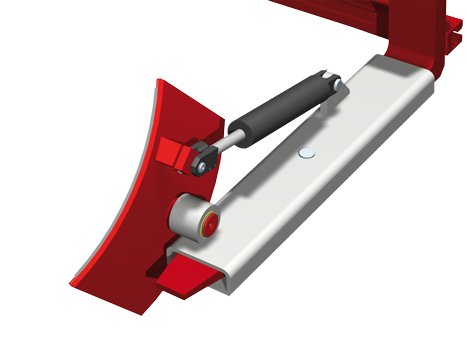

Cylindrical loads can be picked up and turned by 180° and completely emptied with KAUP Rotating Roll Arms T106AH 180°.

  • Simple assembly
  • Solid construction
  • Other drum diameters available
  • Hydraulically turnable by 180° Adaption for drum handling possible

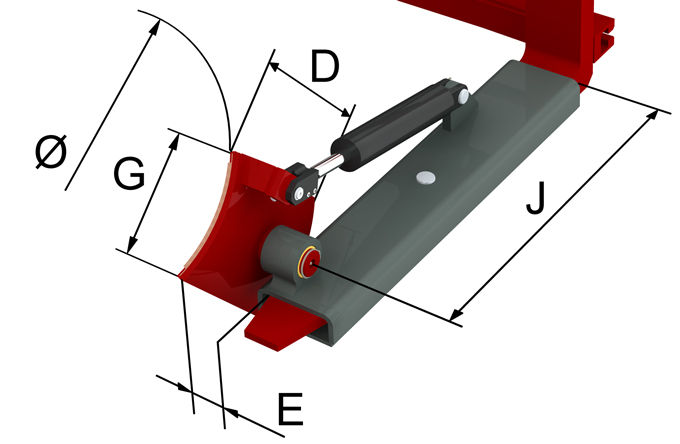

Model Number of hydr. arms mm G mm D mm Arm-overhang per side. E mm Min. distance to fork back J mm Weight kg
2T106AH180 1 560-630 400 250 180 800 120
2T106A-2H180 2 560-630 400 250 180 800 148
4T106A-2H180 2 560-630 400 250 180 800 158
