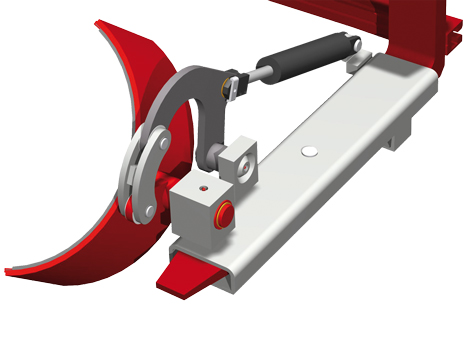

T106AHA-2H90 Rotating Roll Arms

slip-on version - hydraulically turnable up to 90°

Request Pricing

KAUP Rotating Roll Arms T106AH 90° are used when cylindrical loads are only occasionally picked up and tilted or turned.

  • Simple assembly
  • Solid construction
  • Other drum diameters available
  • Hydraulically turnable by 90° Adaption for drum handling possible

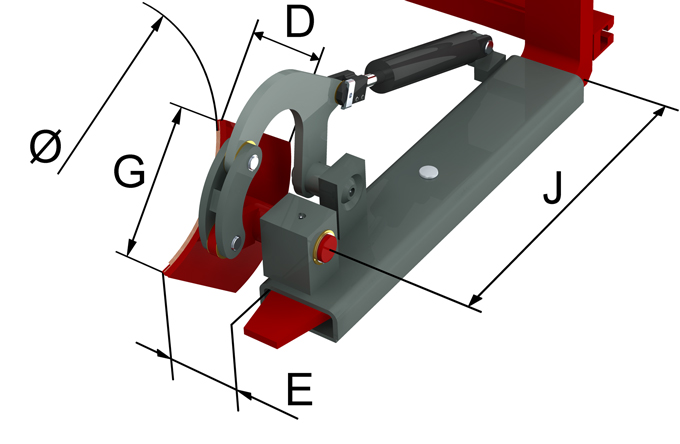

Model Number of hydr. arms mm G mm D mm Arm-overhang per side. E mm Min. distance to fork back J mm Weight kg
2T106AH90 1 560-630 400 250 120 700 102
2T106A-2H90 2 560-630 400 250 120 700 132
4T106A-2H90 2 560-630 400 250 120 700 140
