T466BT180BT Fork Positioner with Telescopic Fork

with independent sideshift - 2 hydraulic functions + solenoid valve

Request Pricing

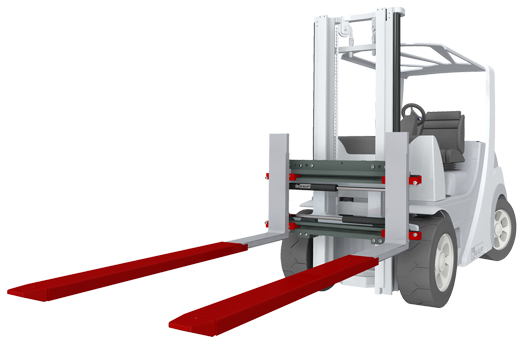

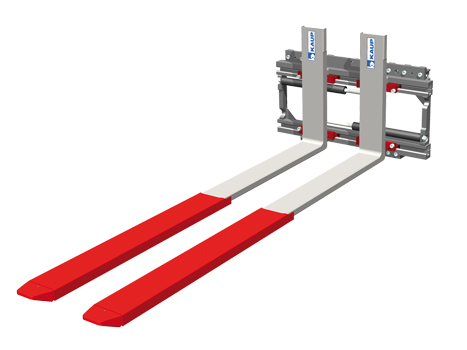

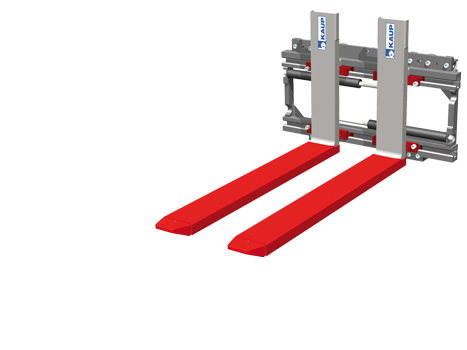

KAUP Telescopic Forks can be easily combined with other attachments. The Fork Positioner with Telescopic Forks type T466/T180BT is one of these combinations. The forklift truck driver can adjust the distance between forks to suit the width of the load and at the same time, handle loads lifted from or put down double deep.

  • Very good residual capacity
  • Good visibility conditions
  • Independent sideshift serially
  • Also available in integrated version
  • Forks with synchronism

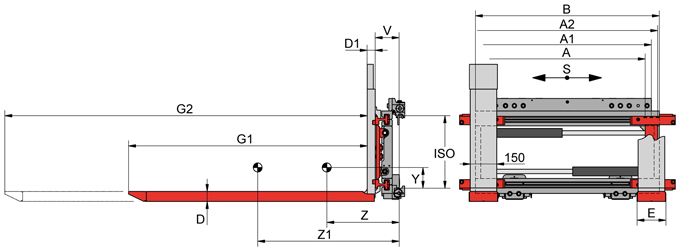

Model Cap. kg LCD mm A mm A1 mm A2 mm B mm E mm D mm D1 mm G1 mm G2 mm S mm ISO V mm CofG Z mm CofG Z1 mm CofG Y mm Weight kg
2T466B/2,5T180BT 2.020 600 180-880 250-950 320-1.020 1.040 163 56 45 1.200 2.050 100 2 138 358 458 130 365
2T466B/2,5T180BT 2.020 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.200 2.050 100 2 138 353 451 131 372
2T466B/2,5T180BT 2.020 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.200 2.050 100 2 138 343 439 133 384
2T466B/2,5T180BT.1 2.020 600 180-880 250-950 320-1.020 1.040 163 56 45 1.350 2.350 100 2 138 410 535 121 384
2T466B/2,5T180BT.1 2.020 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.350 2.350 100 2 138 404 527 123 391
2T466B/2,5T180BT.1 2.020 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.350 2.350 100 2 138 394 513 126 403
4,8T466B/3,5T180BT 3.500 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.200 2.050 100 3 153 304 380 183 473
4,8T466B/3,5T180BT 3.500 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.200 2.050 100 3 153 295 369 186 492
4,8T466B/3,5T180BT 3.500 600 180-1.360 250-1.430 320-1.500 1.550 163 56 45 1.200 2.050 100 3 153 286 357 189 512
4,8T466B/3,5T180BT.1 3.500 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.350 2.350 100 3 153 347 444 174 492
4,8T466B/3,5T180BT.1 3.500 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.350 2.350 100 3 153 337 430 177 511
4,8T466B/3,5T180BT.1 3.500 600 180-1.360 250-1.430 320-1.500 1.550 163 56 45 1.350 2.350 100 3 153 327 417 180 531
4,8T466B/4,5T180BT 4.500 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.200 2.050 100 3 153 296 382 187 468
4,8T466B/4,5T180BT 4.500 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.200 2.050 100 3 153 287 370 190 487
4,8T466B/4,5T180BT 4.500 600 180-1.360 250-1.430 320-1.500 1.550 163 56 45 1.200 2.050 100 3 153 279 358 193 507
4,8T466B/4,5T180BT.1 4.500 600 180-980 250-1.050 320-1.120 1.150 163 56 45 1.350 2.350 100 3 153 337 447 179 486
4,8T466B/4,5T180BT.1 4.500 600 180-1.180 250-1.250 320-1.320 1.350 163 56 45 1.350 2.350 100 3 153 328 433 181 505
4,8T466B/4,5T180BT.1 4.500 600 180-1.360 250-1.430 320-1.500 1.550 163 56 45 1.350 2.350 100 3 153 318 419 185 525
