T413 Bale Clamp/Pulp Bale Clamp

with independent sideshift - 2 hydraulic functions

Request Pricing

The T413 attachment is designed with high visibility and mainly used for in-plant, non-palletised transportation of bales of paper, waste paper, tobacco and textiles or also boxes and containers. Pulp, foamed plastic (polystyrene) wool and Big-Bags can also be transported with specially designed clamping arms.

  • Excellent price-performance ratio
  • Very good visibility
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C- profiles
  • Solid slim arm design
  • Independent sideshift serially
  • Combination with KAUP rotary devices possible
  • Customer specified modifications feasible

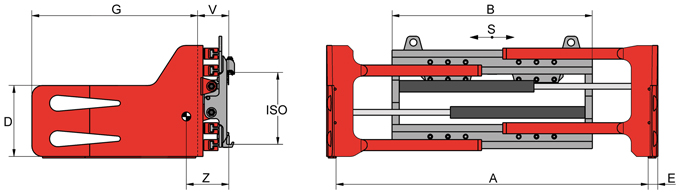

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight app. kg
1,5T413 1.400 500 ±100 495-1.675 970 440 37 800 2 158 227 354
1,5T413 1.400 500 ±100 495-1.675 970 440 37 1.000 2 158 289 390
1,5T413 1.400 500 ±100 495-1.675 970 440 37 1.200 2 158 359 436
1,5T413 1.400 500 ±100 565-1.815 970 440 37 800 2 158 226 355
1,5T413 1.400 500 ±100 565-1.815 970 440 37 1.000 2 158 288 391
1,5T413 1.400 500 ±100 565-1.815 970 440 37 1.200 2 158 358 437
1,5T413 1.400 500 ±100 425-1.605 1.040 440 37 800 2 158 225 358
1,5T413 1.400 500 ±100 425-1.605 1.040 440 37 1.000 2 158 287 394
1,5T413 1.400 500 ±100 425-1.605 1.040 440 37 1.200 2 158 356 440
1,5T413 1.400 500 ±100 495-1.745 1.040 440 37 800 2 158 225 359
1,5T413 1.400 500 ±100 495-1.745 1.040 440 37 1.000 2 158 286 395
1,5T413 1.400 500 ±100 495-1.745 1.040 440 37 1.200 2 158 356 441
1,5T413 1.400 500 ±100 480-1.880 1.200 440 37 800 2 158 218 377
1,5T413 1.400 500 ±100 480-1.880 1.200 440 37 1.000 2 158 277 413
1,5T413 1.400 500 ±100 480-1.880 1.200 440 37 1.200 2 158 345 459
2T413 2.100 500 ±100 575-1.875 1.040 440 42 800 2 173 226 430
2T413 2.100 500 ±100 575-1.875 1.040 440 42 1.000 2 173 286 472
2T413 2.100 500 ±100 575-1.875 1.040 440 42 1.200 2 173 356 531
2T413 2.100 500 ±100 575-1.875 1.040 440 42 800 3 173 226 430
2T413 2.100 500 ±100 575-1.875 1.040 440 42 1.000 3 173 286 472
2T413 2.100 500 ±100 575-1.875 1.040 440 42 1.200 3 173 356 531
2T413 2.100 500 ±100 675-2.075 1.040 440 42 800 2 173 225 432
2T413 2.100 500 ±100 675-2.075 1.040 440 42 1.000 2 173 285 475
2T413 2.100 500 ±100 675-2.075 1.040 440 42 1.200 2 173 355 533
2T413 2.100 500 ±100 675-2.075 1.040 440 42 800 3 173 225 432
2T413 2.100 500 ±100 675-2.075 1.040 440 42 1.000 3 173 285 475
2T413 2.100 500 ±100 675-2.075 1.040 440 42 1.200 3 173 355 533
2T413 2.100 500 ±100 485-1.785 1.130 440 42 800 2 173 224 435
2T413 2.100 500 ±100 485-1.785 1.130 440 42 1.000 2 173 284 477
2T413 2.100 500 ±100 485-1.785 1.130 440 42 1.200 2 173 353 536
2T413 2.100 500 ±100 485-1.785 1.130 440 42 800 3 173 224 435
2T413 2.100 500 ±100 485-1.785 1.130 440 42 1.000 3 173 284 477
2T413 2.100 500 ±100 485-1.785 1.130 440 42 1.200 3 173 353 536
2T413 2.100 500 ±100 585-1.985 1.130 440 42 800 2 173 223 437
2T413 2.100 500 ±100 585-1.985 1.130 440 42 1.000 2 173 283 480
2T413 2.100 500 ±100 585-1.985 1.130 440 42 1.200 2 173 352 538
2T413 2.100 500 ±100 585-1.985 1.130 440 42 800 3 173 223 437
2T413 2.100 500 ±100 585-1.985 1.130 440 42 1.000 3 173 283 480
2T413 2.100 500 ±100 585-1.985 1.130 440 42 1.200 3 173 352 538
2T413 2.100 500 ±100 485-1.985 1.330 440 42 800 2 173 219 450
2T413 2.100 500 ±100 485-1.985 1.330 440 42 1.000 2 173 277 493
2T413 2.100 500 ±100 485-1.985 1.330 440 42 1.200 2 173 346 551
2T413 2.100 500 ±100 485-1.985 1.330 440 42 800 3 173 219 450
2T413 2.100 500 ±100 485-1.985 1.330 440 42 1.000 3 173 277 493
2T413 2.100 500 ±100 485-1.985 1.330 440 42 1.200 3 173 346 551
2T413 2.100 500 ±100 595-2.395 1.520 440 42 800 2 173 207 490
2T413 2.100 500 ±100 595-2.395 1.520 440 42 1.000 2 173 262 533
2T413 2.100 500 ±100 595-2.395 1.520 440 42 1.200 2 173 327 591
2T413 2.100 500 ±100 595-2.395 1.520 440 42 800 3 173 207 490
2T413 2.100 500 ±100 595-2.395 1.520 440 42 1.000 3 173 262 533
2T413 2.100 500 ±100 595-2.395 1.520 440 42 1.200 3 173 327 591
3T413 2.500 500 ±100 475-1.775 1.130 500 47 1.000 2 187 287 612
3T413 2.500 500 ±100 475-1.775 1.130 500 47 1.200 2 187 322 636
3T413 2.500 500 ±100 475-1.775 1.130 500 47 1.000 3 187 287 612
3T413 2.500 500 ±100 475-1.775 1.130 500 47 1.200 3 187 322 636
3T413 2.500 500 ±100 575-1.975 1.130 500 47 1.000 2 187 286 614
3T413 2.500 500 ±100 575-1.975 1.130 500 47 1.200 2 187 322 638
3T413 2.500 500 ±100 575-1.975 1.130 500 47 1.000 3 187 286 614
3T413 2.500 500 ±100 575-1.975 1.130 500 47 1.200 3 187 322 638
3T413 2.500 500 ±100 475-1.975 1.330 500 47 1.000 2 187 281 631
3T413 2.500 500 ±100 475-1.975 1.330 500 47 1.200 2 187 315 655
3T413 2.500 500 ±100 475-1.975 1.330 500 47 1.000 3 187 281 631
3T413 2.500 500 ±100 475-1.975 1.330 500 47 1.200 3 187 315 655
3T413 2.500 500 ±100 605-2.235 1.330 500 47 1.000 2 187 280 634
3T413 2.500 500 ±100 605-2.235 1.330 500 47 1.200 2 187 315 658
3T413 2.500 500 ±100 605-2.235 1.330 500 47 1.000 3 187 280 634
3T413 2.500 500 ±100 605-2.235 1.330 500 47 1.200 3 187 315 658
3T413 2.500 500 ±100 475-2.105 1.460 500 47 1.000 2 187 277 644
3T413 2.500 500 ±100 475-2.105 1.460 500 47 1.200 2 187 311 667
3T413 2.500 500 ±100 475-2.105 1.460 500 47 1.000 3 187 277 644
3T413 2.500 500 ±100 475-2.105 1.460 500 47 1.200 3 187 311 667
3T413 2.500 500 ±100 645-2.445 1.460 500 47 1.000 2 187 276 647
3T413 2.500 500 ±100 645-2.445 1.460 500 47 1.200 2 187 310 671
3T413 2.500 500 ±100 645-2.445 1.460 500 47 1.000 3 187 276 647
3T413 2.500 500 ±100 645-2.445 1.460 500 47 1.200 3 187 310 671
4T413 3.000 500 ±100 575-1.975 1.130 500 47 1.000 3 197 269 671
4T413 3.000 500 ±100 575-1.975 1.130 500 47 1.200 3 197 312 705
4T413 3.000 500 ±100 375-1.775 1.330 500 47 1.000 3 197 265 688
4T413 3.000 500 ±100 375-1.775 1.330 500 47 1.200 3 197 306 722
4T413 3.000 500 ±100 475-1.975 1.330 500 47 1.000 3 197 264 690
4T413 3.000 500 ±100 475-1.975 1.330 500 47 1.200 3 197 306 724
4T413 3.000 500 ±100 605-2.235 1.330 500 47 1.000 3 197 263 692
4T413 3.000 500 ±100 605-2.235 1.330 500 47 1.200 3 197 305 727
4T413 3.000 500 ±100 345-1.845 1.460 500 47 1.000 3 197 261 700
4T413 3.000 500 ±100 345-1.845 1.460 500 47 1.200 3 197 302 735
4T413 3.000 500 ±100 475-2.105 1.460 500 47 1.000 3 197 261 703
4T413 3.000 500 ±100 475-2.105 1.460 500 47 1.200 3 197 302 737
4T413 3.000 500 ±100 635-2.435 1.460 500 47 1.000 3 197 260 707
4T413 3.000 500 ±100 635-2.435 1.460 500 47 1.200 3 197 301 741
4T413 3.000 500 ±100 385-2.015 1.550 500 47 1.000 3 197 255 755
4T413 3.000 500 ±100 385-2.015 1.550 500 47 1.200 3 197 294 789
4,5T413 3.200 600 ±100 595-1.995 1.200 500 52 1.200 3 228 311 833
4,5T413 3.200 600 ±100 595-1.995 1.200 500 52 1.400 3 228 375 902
4,5T413 3.200 600 ±100 595-1.995 1.200 500 52 1.600 3 228 448 943
4,5T413 3.200 600 ±100 465-1.865 1.330 500 52 1.200 3 228 307 849
4,5T413 3.200 600 ±100 465-1.865 1.330 500 52 1.400 3 228 369 917
4,5T413 3.200 600 ±100 465-1.865 1.330 500 52 1.600 3 228 442 959
4,5T413 3.200 600 ±100 695-2.325 1.330 500 52 1.200 3 228 305 856
4,5T413 3.200 600 ±100 695-2.325 1.330 500 52 1.400 3 228 369 925
4,5T413 3.200 600 ±100 695-2.325 1.330 500 52 1.600 3 228 440 965
4,5T413 3.200 600 ±100 435-1.935 1.460 500 52 1.200 3 228 302 868
4,5T413 3.200 600 ±100 435-1.935 1.460 500 52 1.400 3 228 365 936
4,5T413 3.200 600 ±100 435-1.935 1.460 500 52 1.600 3 228 435 978
4,5T413 3.200 600 ±100 565-2.195 1.460 500 52 1.200 3 228 301 872
4,5T413 3.200 600 ±100 565-2.195 1.460 500 52 1.400 3 228 363 941
4,5T413 3.200 600 ±100 565-2.195 1.460 500 52 1.600 3 228 435 981
4,5T413 3.200 600 ±100 765-2.595 1.460 500 52 1.200 3 228 300 878
4,5T413 3.200 600 ±100 765-2.595 1.460 500 52 1.400 3 228 362 947
4,5T413 3.200 600 ±100 765-2.595 1.460 500 52 1.600 3 228 433 986
5T413 3.900 600 ±160 640-2.270 1.460 500 52 1.200 4 216 298 1.026
5T413 3.900 600 ±160 640-2.270 1.460 500 52 1.400 4 216 329 1.063
5T413 3.900 600 ±160 640-2.270 1.460 500 57 1.600 4 216 418 1.204
5T413 3.900 600 ±160 550-2.180 1.550 500 52 1.200 4 216 295 1.036
5T413 3.900 600 ±160 550-2.180 1.550 500 52 1.400 4 216 327 1.073
5T413 3.900 600 ±160 550-2.180 1.550 500 57 1.600 4 216 415 1.214
5T413 3.900 600 ±160 550-2.450 1.820 500 52 1.200 4 216 287 1.078
5T413 3.900 600 ±160 550-2.450 1.820 500 52 1.400 4 216 317 1.115
5T413 3.900 600 ±160 550-2.450 1.820 500 57 1.600 4 216 404 1.236
5T413 3.900 600 ±160 750-2.850 1.820 500 52 1.200 4 216 286 1.085
5T413 3.900 600 ±160 750-2.850 1.820 500 52 1.400 4 216 316 1.122
5T413 3.900 600 ±160 750-2.850 1.820 500 57 1.600 4 216 402 1.263
