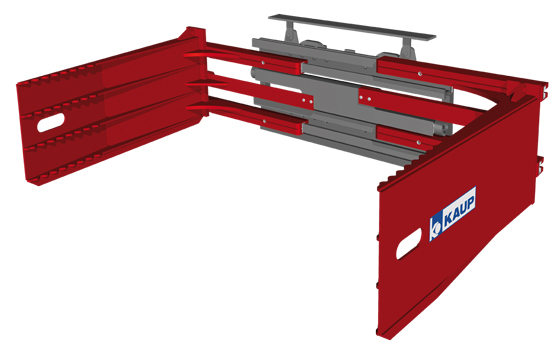

T413RC Recycling Bale Clamp

with independent sideshift - with cylinder- and sideshift protection - 2 hydraulic functions

Request Pricing

KAUP Recycling Bale Clamps are suitable for the transportation of non- palletised reusable materials in the recycling industry. This special range of bale clamps has several specific features, e.g. clamping arms 2 metres long for clamping the load, strengthened arm connections on the clamp profiles to allow clamping with the tips of the arms.

  • Excellent price-performance ratio
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Strengthened arm construction with toothed bars
  • Solid wear and tear bars under clamp body and clamp arms optionally
  • Independent sideshift serially
  • Combination with KAUP rotary devices possible
  • Customer specified modifications feasible

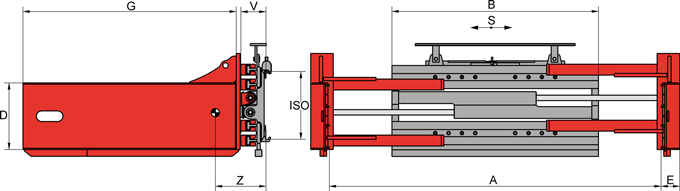

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight app. kg
2T413RC 2.100 500 ±100 575-1.875 1.040 440 42 1.000 2 143 280 573
2T413RC 2.100 500 ±100 575-1.875 1.040 440 42 1.200 2 143 346 628
2T413RC 2.100 500 ±100 575-1.875 1.040 440 42 1.000 3 143 280 573
2T413RC 2.100 500 ±100 575-1.875 1.040 440 42 1.200 3 143 346 628
2T413RC 2.100 500 ±100 485-1.785 1.130 440 42 1.000 2 143 277 580
2T413RC 2.100 500 ±100 485-1.785 1.130 440 42 1.200 2 143 343 635
2T413RC 2.100 500 ±100 485-1.785 1.130 440 42 1.000 3 143 277 580
2T413RC 2.100 500 ±100 485-1.785 1.130 440 42 1.200 3 143 343 635
2T413RC 2.100 500 ±100 595-2.395 1.520 440 42 1.000 2 143 258 641
2T413RC 2.100 500 ±100 595-2.395 1.520 440 42 1.200 2 143 319 696
2T413RC 2.100 500 ±100 595-2.395 1.520 440 42 1.000 3 143 258 641
2T413RC 2.100 500 ±100 595-2.395 1.520 440 42 1.200 3 143 319 696
3T413RC 2.500 500 ±100 465-1.765 1.130 500 130 1.400 2 153 371 811
3T413RC 2.500 500 ±100 465-1.765 1.130 500 130 1.600 2 153 422 847
3T413RC 2.500 500 ±100 465-1.765 1.130 500 130 1.400 3 153 371 811
3T413RC 2.500 500 ±100 465-1.765 1.130 500 130 1.600 3 153 422 847
3T413RC 2.500 500 ±100 605-2.235 1.330 500 130 1.400 2 153 361 840
3T413RC 2.500 500 ±100 605-2.235 1.330 500 130 1.600 2 153 410 875
3T413RC 2.500 500 ±100 605-2.235 1.330 500 130 1.400 3 153 361 840
3T413RC 2.500 500 ±100 605-2.235 1.330 500 130 1.600 3 153 410 875
4T413RC 3.000 500 ±100 565-1.965 1.130 500 130 1.400 3 163 370 919
4T413RC 3.000 500 ±100 565-1.965 1.130 500 130 1.600 3 163 419 955
4T413RC 3.000 500 ±100 595-2.225 1.330 500 130 1.400 3 163 354 975
4T413RC 3.000 500 ±100 595-2.225 1.330 500 130 1.600 3 163 401 1.011
4,5T413RC 2.200 800 ±100 550-1.950 1.200 500 130 1.600 3 188 391 1.025
4,5T413RC 2.200 800 ±100 550-1.950 1.200 500 130 2.000 3 188 489 1.095
4,5T413RC 2.200 800 ±100 650-2.280 1.330 500 130 1.600 3 188 383 1.051
4,5T413RC 2.200 800 ±100 650-2.280 1.330 500 130 2.000 3 188 479 1.122
4,5T413RC 2.200 800 ±100 700-2.330 1.460 500 130 1.600 3 188 377 1.072
4,5T413RC 2.200 800 ±100 700-2.330 1.460 500 130 2.000 3 188 471 1.142
4,5T413RC 2.200 800 ±100 870-2.500 1.550 500 130 1.600 3 188 372 1.092
4,5T413RC 2.200 800 ±100 870-2.500 1.550 500 130 2.000 3 188 465 1.162
