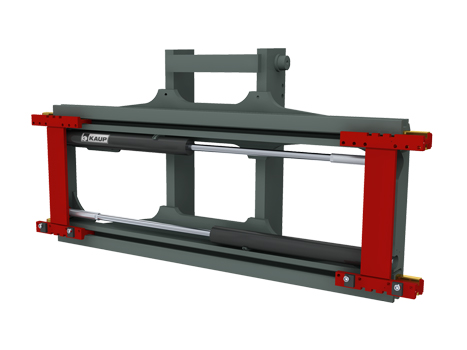

T160BI Fork Positioner

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

Request Pricing

The KAUP integrated Fork Positioner T160BI is an economical integrated Fork Positioner with excellent view to the fork tips and load. Compared to hook-on attachments in the T160 range this Fork Positioner has an even better residual capacity.

Economical integrated Fork Positioner for moderately heavy operation
Excellent residual capacity
High stability with optimal tare weight
Very good visibility conditions
Valve block sideshift serially
Original forklift trucks useable

Recycling

B&B Attachments offer a comprehensive service in providing material handling solutions for a number of industries.

Logistics

Across the globe, B&B attachments are providing material handling solutions that help logistics professionals move their materials.

Pallet Handling

Pallet handling is an essential component in most operations. Storage and transport throughout the warehouse must be well planned.

B&B Attachments helps improve productivity at Charcon CS

Charcon Construction Solutions offers integrated building services by providing innovative offsite-manufactured components and precast products for most stages of construction. Charcon CS also offers energy-efficient and cost-effective solutions for the construction of modern industrial buildings. The company is comprised of a network of facilities across the UK, specialising in the housing, healthcare, education, industrial and commercial sectors.

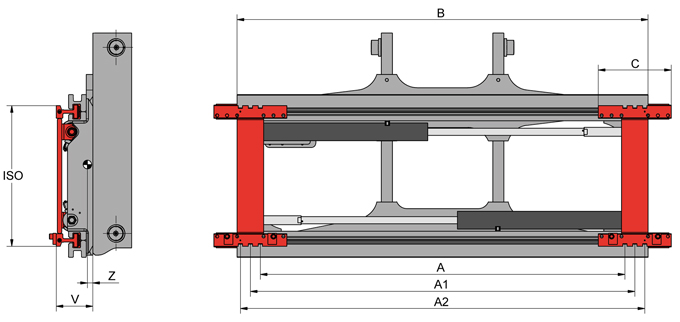

Model	Cap. kg	LCD mm	A mm	A1 mm	A2 mm	B mm	C mm	mm	ISO	V mm	CofG Z mm	Weight kg
2T160BI	2.500	500	150-850	250-950	320-1.020	1.040	240	120	2	116	51	117
2T160BI	2.500	500	150-950	250-1.050	320-1.120	1.150	240	120	2	116	51	123
2,5T160BI	2.500	600	150-850	250-950	320-1.020	1.040	240	120	2	126	57	126
2,5T160BI	2.500	600	150-950	250-1.050	320-1.120	1.150	240	120	2	126	57	132
3,5T160BI	3.600	500	180-980	250-1.050	320-1.120	1.150	240	130	3	131	56	165
3,5T160BI	3.600	500	180-1.180	250-1.250	320-1.320	1.350	240	130	3	131	56	180
4,8T160BI	5.000	600	180-1.180	250-1.250	320-1.320	1.350	255	150	3	141	63	250
4,8T160BI	5.000	600	180-1.360	250-1.430	320-1.500	1.550	255	150	3	141	63	269
6T160BI	6.000	600	260-1.170	350-1.260	440-1.350	1.460	330	150	4	166	64	395
6T160BI	6.000	600	260-1.360	350-1.450	440-1.540	1.650	330	150	4	166	63	411
6T160BI	6.000	600	260-1.560	350-1.650	440-1.740	1.860	330	150	4	166	61	457
8T160BI	8.000	600	260-1.560	350-1.650	440-1.740	1.860	330	150	4	166	61	457
8T160BI	8.000	600	260-1.760	350-1.850	440-1.940	2.060	330	150	4	166	61	474
8T160BI	8.000	600	260-1.960	350-2.050	440-2.140	2.260	330	150	4	166	62	490
8T160BI	8.000	600	260-2.060	350-2.150	440-2.240	2.400	330	150	4	166	62	502
10T160BI	8.000	1.100	260-1.760	360-1.860	460-1.960	2.060	370	200	4	210	97	605
10T160BI	8.000	1.100	260-1.960	360-2.060	460-2.160	2.260	370	200	4	210	96	635
10T160BI	8.000	1.100	260-2.060	360-2.160	460-2.260	2.400	370	200	4	210	94	654
