T391 Rotator

with independent sideshift - 2 hydraulic functions

Request Pricing

The KAUP Rotator T391 attachment is fundamental for onsite operations when loads require rotating, and is used to empty containers, to turn palletised and non-palletised goods, and to deal with waste.  Rotators can be equipped with a fork carriage and forks, as well as with clamps or other load handling attachments.

Kaup Rotators allow for optimal visibility when approaching loads, whilst increasing driver confidence and ensuring safe and secure handling. The hydraulic drive is located on the side away from the operator resulting in excellent visibility, enabling fast and reliable operation.

  • Good visibility conditions
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Sideshift serially
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally

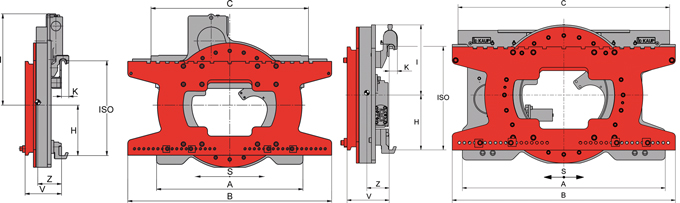

Model Cap. kg LCD mm S mm A mm B mm C mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
1T391.2 1.800 500 ±100 780 780 858 213 294 32 2 6.013 7,6 192 99 199
1T391.2 1.800 500 ±100 780 890 858 213 294 32 2 6.013 7,6 192 101 205
2T391.1 2.500 500 ±100 790 1.040 858 269 492 32 2 7.700 9,7 172 90 255
2T391.2 2.500 500 ±100 1.000 1.040 950 270 345 32 2 7.700 9,7 208 104 283
2,5T391.1 3.200 500 ±100 790 1.100 850 269 492 40 3 7.700 9,7 198 113 310
2,5T391.2 3.200 500 ±100 1.000 1.100 1.043 270 345 40 3 7.700 9,7 208 110 350
4T391.2 5.000 500 ±100 1.010 1.100 1.010 339 395 40 3 8.950 11,3 215 113 425
4,5T391.1 5.000 500 ±160 1.110 1.350 940 378 675 49 4 14.823 17,4 229 123 595
5T391.2 6.000 600 ±160 1.260 1.350 1.260 345 455 50 4 13.434 15,7 264 142 740
6T391.2 6.500 600 ±160 1.260 1.350 1.260 345 455 50 4 17.157 20,7 264 138 790
8T391.2 8.000 900 ±160 1.300 1.600 1.700 396 480 54 4 21.679 18,8 304 164 1.110
