T351G Rotator

1 hydraulic function

Request Pricing

The KAUP Rotator 360° T351 is also available in a foundry version. This attachment is adapted to the demands of this operational with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes.

This attachment is fundamental for onsite operations when loads require rotating, and is used to empty containers, to turn palletised and non-palletised goods, and to deal with waste.  Rotators can be equipped with a fork carriage and forks, as well as with clamps or other load handling attachments.

Kaup Rotators allow for optimal visibility when approaching loads, whilst increasing driver confidence and ensuring safe and secure handling. The hydraulic drive is located on the side away from the operator resulting in excellent visibility, enabling fast and reliable operation.

  • Foundry implementation
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Original forks usableLateral supporting fork and load stabilizers optionally

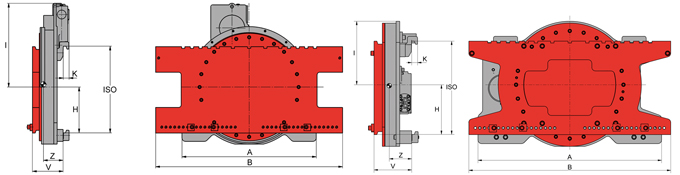

Model Cap. kg LCD mm A mm B mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
1T351.2G 1.800 500 817 890 203 288 33 2 6.013 7,6 207 124 250
2T351.1G 2.500 500 790 1.040 269 515 29 2 7.700 9,7 174 93 302
2T351.1G 2.500 500 790 1.150 269 515 29 2 7.700 9,7 174 95 310
2,5T351.1G 3.200 500 790 1.100 269 515 33 3 7.700 9,7 179 106 387
3,5T351.1G 4.000 500 880 1.100 381 539 36 3 11.815 13,8 202 113 525
4T351.1G 5.000 500 900 1.100 378 595 36 3 14.823 17,4 221 120 575
4,5T351.1G 5.000 500 900 1.350 328 695 40 4 14.823 17,4 231 129 670
5T351.2G 6.000 600 1.260 1.350 345 455 40 4 13.434 15,7 275 163 780
6T351.2G 6.500 600 1.260 1.350 345 455 40 4 17.157 20,7 275 157 831
8T351.2G 8.000 900 1.300 1.600 396 480 40 4 21.679 18,8 304 175 1.080
