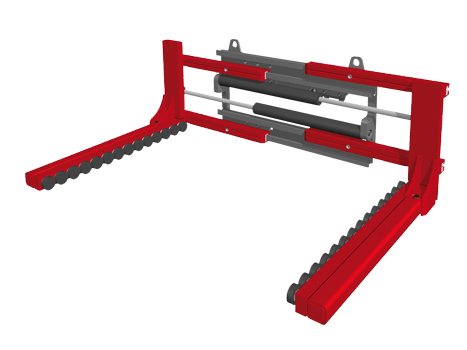

T412H Block and Brick Clamp

with independent sideshift - with mechano-hydraulic equilibration pistons - 2 hydraulic functions

Request Pricing

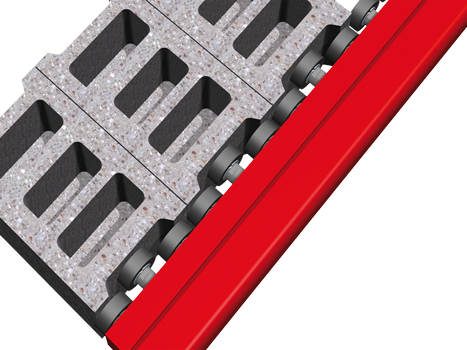

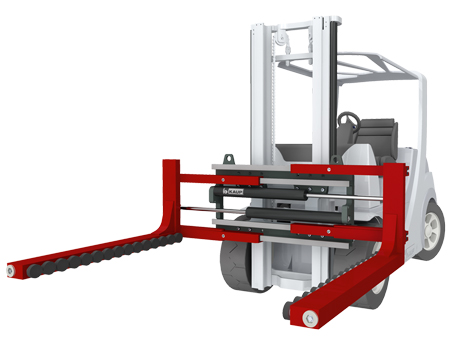

KAUP Block and Brick Clamps T412H are used for handling small format blocks such as building bricks and paving stones. The grease filled clamping arms of this attachment have mechano-hydraulic equilibration pistons with different coatings. They adapt to irregular shaped loads and can therefore clamp the load as required. Steel plates for handling rough, hard, heavy concrete blocks, rubber coating for pick up of aerated concrete blocks and Vulcollan coating as an all-rounder are just some of the possibilities available.

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Different kinds of equalising buffers on offer
  • Load Backrest optionally

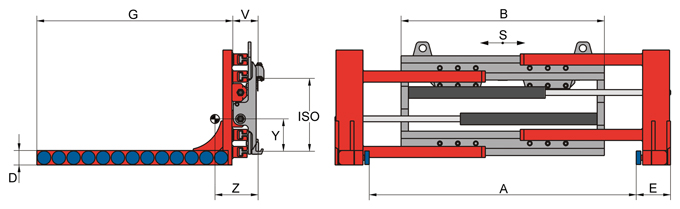

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
1,5T412H 1.250 500 ±100 260-1.440 970 80 201 1.024 2 133 287 161 422
2T412H 2.000 500 ±100 270-1.570 1.130 80 201 1.188 2 143 335 155 500
2T412H 2.000 500 ±100 270-1.570 1.130 80 201 1.188 3 143 335 155 500
3T412H 2.500 500 ±100 230-1.530 1.130 80 224 1.270 3 152 333 170 609
3T412H 2.500 500 ±100 230-1.860 1.460 80 224 1.270 3 152 323 173 636
4,5T412H 3.200 600 ±100 240-1.740 1.330 80 195 1.270 3 188 297 187 770
4,5T412H 3.200 600 ±100 240-1.870 1.460 80 195 1.270 3 188 291 190 795
5T412H 3.500 600 ±160 220-1.850 1.550 80 205 1.270 4 176 230 276 920
