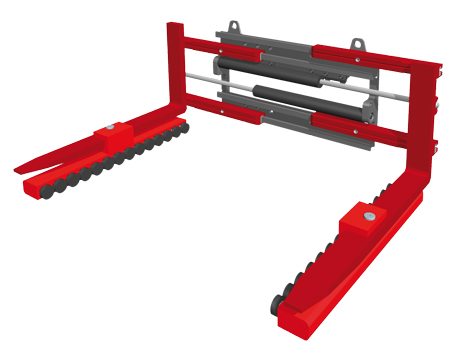

T412UH Block and Brick Clamp

with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions, Fork Clamp T411 underslung version (with hydraulic equilibration pistons) T102UH

Request Pricing

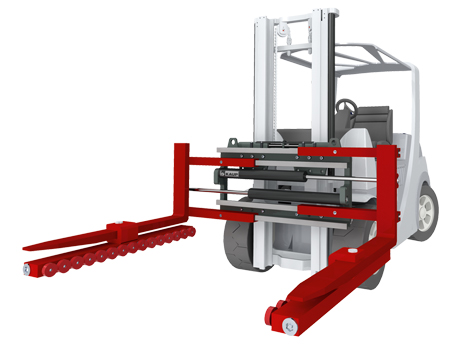

The KAUP Block & Brick Clamp T412UH makes it is easy to change between picking up pallets or grate boxes and handling packets of blocks, as this attachment can be used as a Block Clamp and also as a Fork Clamp.

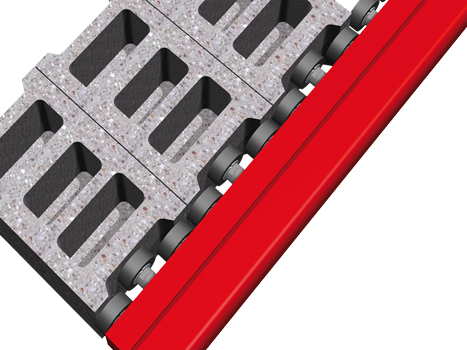

The underslung Block Arms with mechano-hydraulic equalising are suitable for handling small sized blocks. They are mounted oscillating on the carrying part of the existing forks and secured.

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Low entry measurements required
  • Simple assembly
  • Independent sideshift serially
  • Different kinds of equalising buffers on offer
  • Load Backrest optional

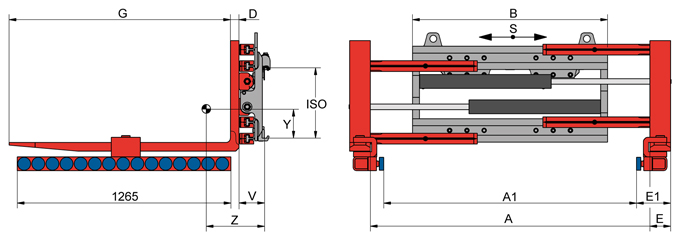

Model Cap. on forks kg Cap. as clamp kg LCD mm S mm A1 mm A mm B mm D mm E mm E1 mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
1,5T412UH 2.300 1.250 500 ±100 140-1.320 320-1.500 970 45 120 210 1.200 2 133 456 74 500
2T412UH 2.800 2.000 500 ±100 140-1.440 320-1.620 1.130 50 120 210 1.200 2 143 432 89 564
2T412UH 2.800 2.000 500 ±100 140-1.440 320-1.620 1.130 50 120 210 1.200 3 143 432 89 564
3T412UH 3.600 2.500 500 ±100 80-1.380 260-1.560 1.130 50 150 235 1.200 3 152 406 113 679
3T412UH 3.600 2.500 500 ±100 80-1.580 260-1.760 1.330 50 150 235 1.200 3 152 397 117 698
3T412UH 3.600 2.500 500 ±100 80-1.710 260-1.890 1.460 50 150 235 1.200 3 152 391 120 710
4,5T412UH 5.000 3.200 600 ±100 40-1.540 220-1.720 1.460 60 150 240 1.200 3 188 370 142 895
5T412UH 6.200 3.500 600 ±160 100-1.730 280-1.910 1.550 70 150 240 1.200 4 176 343 201 1.060
