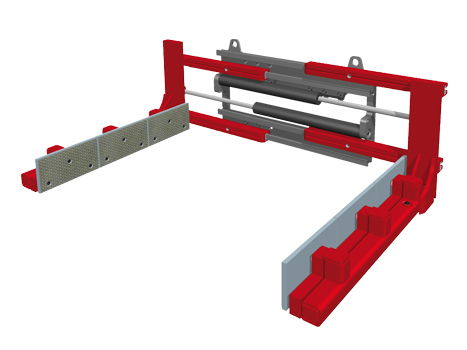

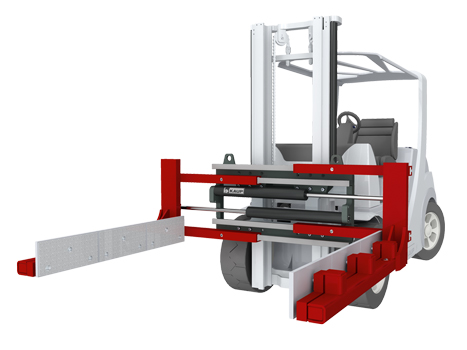

T412HP Block Clamp

with independent sideshift - with mechano-hydraulic equilibration pistons - 2 hydraulic functions

Request Pricing

KAUP Block Clamps T412HP are usually used to handle blocks with the common dimensions of 400 x 200 x 200 mm. Therefore the clamping arms are each fitted with three mechanical equilibration plates (400 x 200 mm). Typically they are manufactured from bulb plate. Depending on the particular application, polyurethane coated contact surfaces are also available.

  • Hydro-mechanical compensation
  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Load Backrest optionally

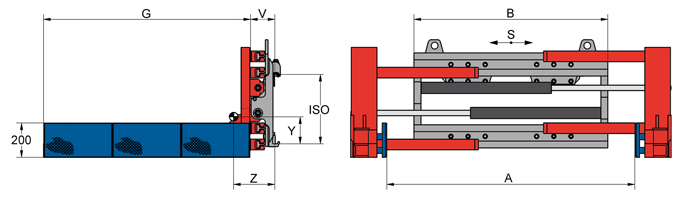

Model Cap. kg LCD mm S mm A mm B mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T412HP 2.000 500 ±100 260-1.560 1.130 1.200 2 143 394 145 585
2T412HP 2.000 500 ±100 260-1.560 1.130 1.200 3 143 394 145 585
3T412HP 2.500 500 ±100 280-1.580 1.130 1.200 3 152 373 152 633
4,5T412HP 3.200 600 ±100 310-1.710 1.330 1.200 3 189 322 189 914
5T412HP 3.500 600 ±160 200-1.800 1.460 1.200 4 178 287 248 1.009
5T412BHP 3.900 600 VSS 300-1.600 1.300 1.200 4 211 285 293 1.212
