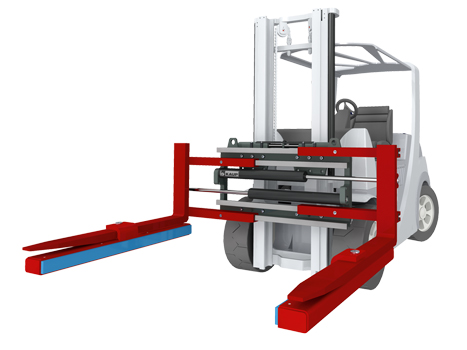

T412UVP Block Clamp

with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions, Fork Clamp T411 underslung version (with vulcollan lining) T102UVP

Request Pricing

KAUP Block Clamps T412UVP are the most suitable attachment when handling is frequently changed between pick up of pallets or grate boxes and handling packets of blocks. This attachment can be used as a Block Clamp and also as a Fork Clamp. Therefore they are typically used in the building industry.

In order to handle packets of blocks the underslung Block Arms are simply slipped on the carrying part of the existing forks and secured.

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Low entry measurements required
  • Simple assembly
  • Independent sideshift serially
  • Load Backrest optionally

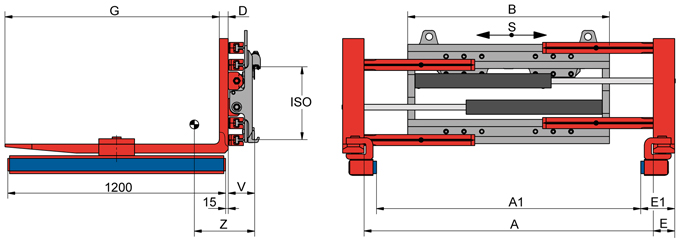

Model Cap. on forks kg Cap. as clamp kg LCD mm S mm A1 mm A mm B mm D mm E mm E1 mm G mm ISO V mm CofG Z mm Weight kg
1,5T412UVP 2.300 1.250 500 ±100 180-1.360 320-1.500 970 45 120 190 1.200 2 133 400 451
2T412UVP 2.800 2.000 500 ±100 180-1.480 320-1.620 1.130 50 120 190 1.200 2 143 376 522
2T412UVP 2.800 2.000 500 ±100 180-1.480 320-1.620 1.130 50 120 190 1.200 3 143 376 522
3T412UVP 3.600 2.500 500 ±100 120-1.420 260-1.560 1.130 50 150 220 1.200 3 152 354 625
3T412UVP 3.600 2.500 500 ±100 120-1.620 260-1.760 1.330 50 150 220 1.200 3 152 350 644
3T412UVP 3.600 2.500 500 ±100 120-1.750 260-1.890 1.460 50 150 220 1.200 3 152 348 656
4,5T412UVP 5.000 3.200 600 ±100 70-1.570 220-1.720 1.460 60 150 225 1.200 3 188 351 895
5T412UVP 6.200 3.500 600 ±160 130-1.760 280-1.910 1.550 70 150 225 1.200 4 176 327 1.055
