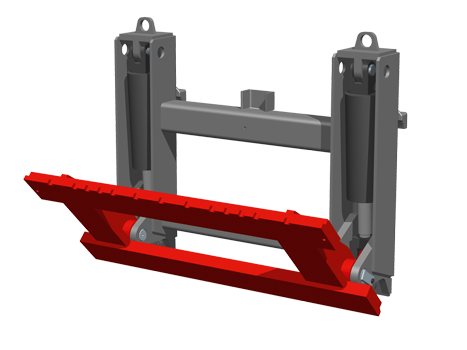

T130 Tipping Carriage

1 hydraulic function

Request Pricing

Externally the Tipping Carriage is the same as a normal Pantograph. The difference lies in the details as the KAUP Tipping Carriage type T130 can tilt up to 90° forwards.

The Tipping Carriage can be combined with a whole range of other attachments which require a tilting function and so presents numerous application possibilities.

  • Tilting angle 90° forwards optional
  • Variation with forward-backwards tilt available upon request
  • Original forklift truck forks useable
Model Cap. kg LCD mm B mm H mm J mm ISO V mm CofG Z mm Weight kg
2T130 2.000 600 1.100 725 1.000 2 280 170 250
3T130 2.400 600 1.100 725 1.000 3 290 185 270
4T130 3.600 600 1.100 725 1.000 3 290 170 410
5T130 4.600 600 1.100 820 1.050 4 422 240 500
6T130 6.900 600 1.100 820 1.050 4 422 250 580
