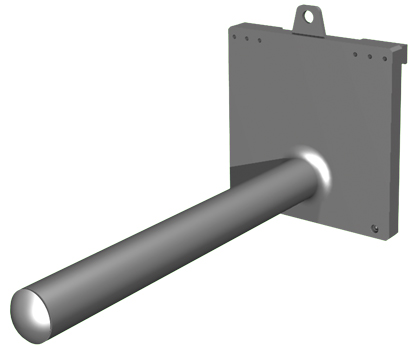

T185 Carrying Ram

Steel tube version

Request Pricing

KAUP Carrying Rams T185 in steel tube version can be found on forklift trucks wherever tubes, coils or other material wound on cores are transported. Carrying Rams with capacities of up to 80 tons can be found in the KAUP product range.

  • Manufactured from steel with high tensile and yield strength
  • Solid design
  • Mounted directly on to the fork carriage - from 12 tons capacity upwards with PIN-type mounting
  • Carrying Ram coated with Polyurethan optional

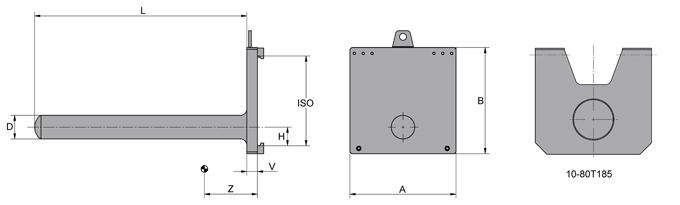

Model D mm A mm B mm H mm L mm Cap. kg LCD mm ISO V mm CofG Z mm Weight kg Add-on weight per 100mm ram length kg Price €
4T185 160 500 600 150 1.000 4.000 500 3 60 190 210 6,09 On request
5T185 195 600 750 150 1.000 6.000 500 4 60 177 305 7,59 On request
8T185 195 600 750 150 1.000 9.600 500 4 80 172 380 8,57 On request
10T185 220 600 900 - 1.000 12.000 500 - 90 176 510 12,00 On request
15T185 300 800 1.000 - 1.000 18.000 500 - 100 138 760 11,80 On request
20T185 360 900 1.000 - 1.000 24.000 500 - 100 147 860 14,60 On request
25T185 360 1.000 1.000 - 1.000 30.000 500 - 100 166 1.000 20,50 On request
40T185 360 1.000 1.100 - 1.000 48.000 500 - 140 200 1.560 34,40 On request
60T185 420 1.000 1.200 - 1.000 80.000 500 - 140 210 1.730 41,50 On request
80T185 510 1.200 1.400 - 1.000 100.800 500 - 160 205 2.700 56,50 On request
