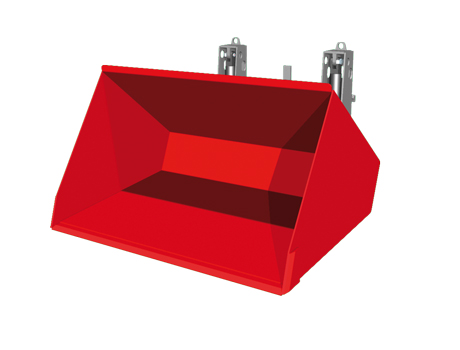

T184 Loading Bucket

1 hydraulic function

Request Pricing

The KAUP Loading Bucket T184 is the right choice for transporting loose goods such as sand, gravel, coal, grain, fertilizer, cement, concrete etc. and to overcome heights, e.g. for filling silos. The specific weight of loose goods can vary between 0,75 to/m³ (grain) and 3,5 to/m³ (scrap metal).

This attachment can even be put into use in winter to clear snow or to deposit it.

For heavy duty operation
Strong, strengthened construction

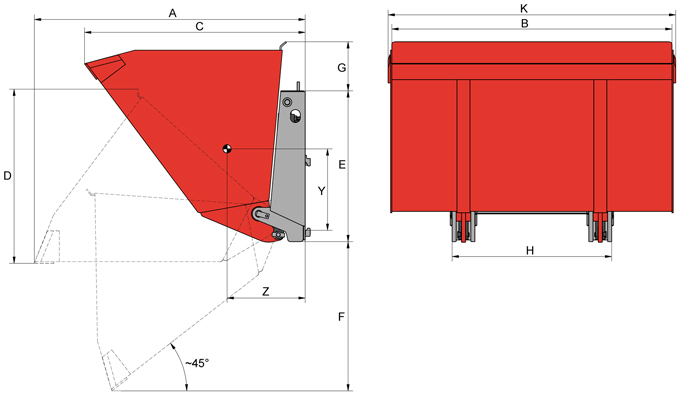

Model	Cap. kg	Cubic capacity M	Contents fluid volumne M	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	K mm	LCD mm	CofG Z mm	CofG Y mm	Weight app. kg
2T184.2	1.760	0,8	0,7	1.610	1.300	1.245	955	925	805	280	980	1.346	830	515	420	530
2T184.2	2.200	1,0	0,9	1.610	1.650	1.245	955	925	805	280	980	1.696	830	525	435	590
2T184.2	2.420	1,1	1,0	1.610	1.800	1.245	955	925	805	280	980	1.846	830	530	445	615
3T184.4	2.420	1,1	0,9	1.660	1.300	1.350	1.070	925	915	300	980	1.346	830	463	504	560
3T184.4	2.640	1,2	1,0	1.660	1.500	1.350	1.070	925	915	300	980	1.546	830	474	508	594
3T184.4	2.860	1,3	1,1	1.660	1.650	1.350	1.070	925	915	300	980	1.696	830	481	511	620
3T184.4	3.080	1,4	1,2	1.660	1.800	1.350	1.070	925	915	300	980	1.846	830	487	514	646
4T184.1	5.000	2,0	1,4	1.780	2.000	1.410	1.135	1.230	810	210	1.004	2.046	890	548	561	835
6T184.4	6.600	3,0	2,4	2.250	2.400	1.990	1.370	1.265	1.190	245	1.143	2.484	1.125	700	595	1.620
6T184.4	7.920	3,6	2,8	2.250	2.800	1.990	1.370	1.265	1.190	245	1.143	2.884	1.125	720	603	1.730
