T183G Crane Jib

slip-on-fork version

Request Pricing

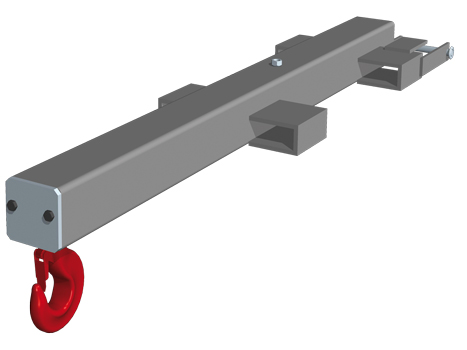

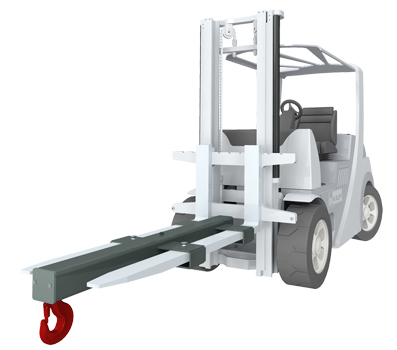

The simple KAUP Crane Jib model T183G is designed with insertion pockets and fitted directly onto standard forklift truck forks and secured there. This attachment makes it possible to lift loads beyond the tips of the forks. This is the perfect choice when a Crane Jib is only used occasionally.

  • Solid construction
  • Simple assembly
  • Different sizes of original forklift truck forks can be used
  • Position of crane hook adjusted mechanically - optionally available with mechanically telescoping jib (T183GTM) or hydraulically telescoping jib (T183GTH)

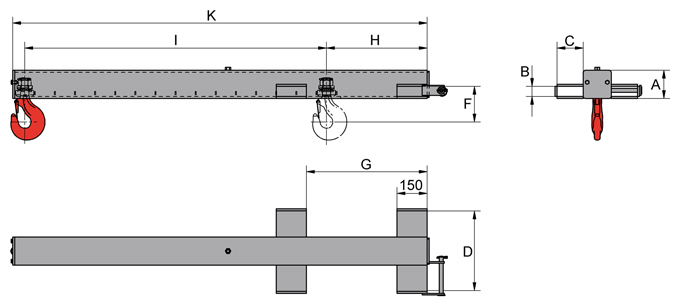

Model Cap. kg LCD mm A mm B mm C mm D mm F mm G mm H mm I mm K mm Weight kg Price €
1T183G 1.500 500 120 50 120 400 183 600 300 12x100 1.560 68 On request
2T183G 2.500 500 140 50 150 480 187 600 300 12x100 1.560 90 On request
3T183G 4.000 500 160 60 150 500 187 600 300 12x100 1.560 116 On request
5T183G 6.000 600 200 70 150 550 255 600 300 8x150 1.585 165 On request
7T183G 8.000 600 260 80 150 530 265 600 300 8x150 1.585 170 On request
10T183G 10.000 600 260 80 210 730 325 600 345 7x165 1.595 315 On request
