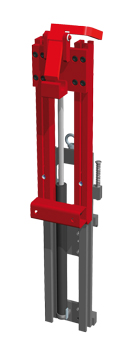

T167C Bucket Discharging Device

hydraulically operated for drop bottom buckets - 1 hydraulic function

Request Pricing

The metal industry is a typical application area for KAUP Bucket Discharging Devices type T167C. This attachment is often used for the transportation of drop-bottom containers which are hydraulically opened.

The Bucket Discharging Device can be mounted directly on the fork carriage between the existing forks. They are often combined with a KAUP Fork Positioner.

  • Low weight
  • Low lost load centre

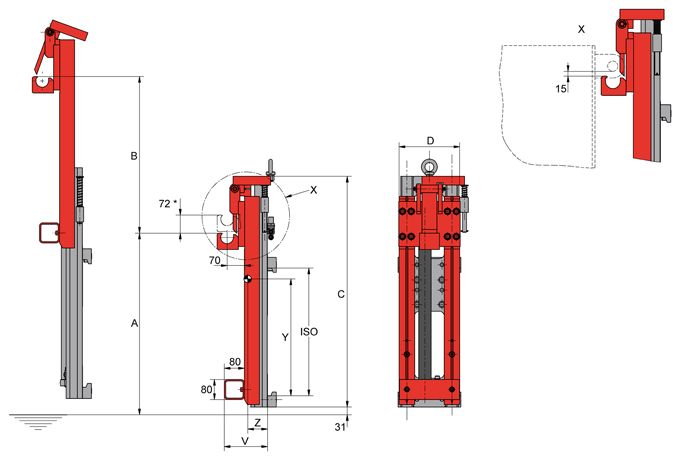

Model Cap. kg A mm B mm C mm D mm ISO V mm CofG Z mm Weight app. kg
2T167C 1.500 725 590 920 242 2 171 55 95
2T167C 1.500 725 590 920 242 3 171 55 95
3T167C 2.500 715 650 970 242 2 181 59 118
3T167C 2.500 715 650 970 242 3 181 59 118
4T167C 3.500 730 1.050 1.320 283 3 196 62 210
